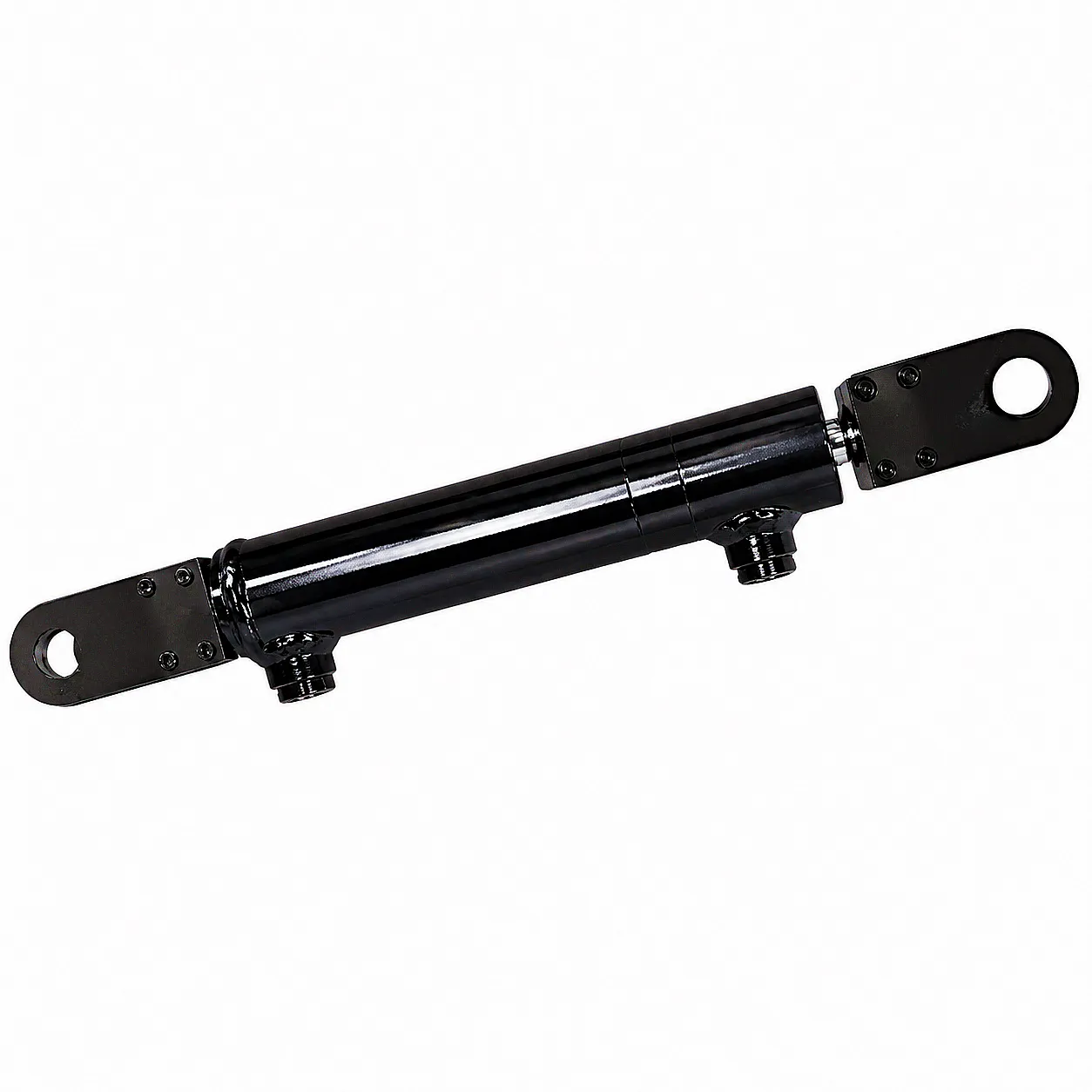

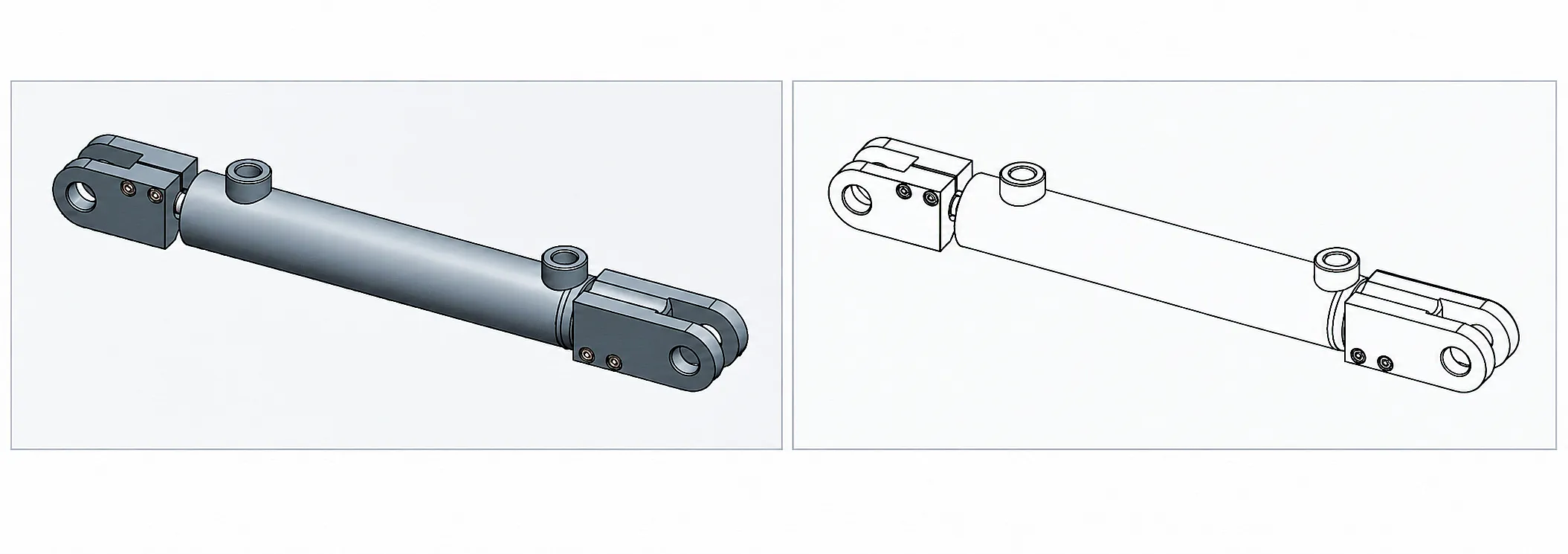

Forklift Attachment Cylinder — Φ40mm, 200mm Stroke
Model HCYY11112031 | 25 MPa Working Pressure | 6 kg | Precision-engineered for UK material handling operations
Compact hydraulic cylinders are the unsung backbone of modern forklift attachment systems, and very few components carry the same critical load as the forklift attachment cylinder. The HCYY11112031 — rated at Φ40mm bore and 200mm stroke — was developed specifically to serve high-cycle attachment applications where envelope space is restricted, yet force density and leak-free reliability cannot be compromised. Across warehousing hubs in Birmingham, logistics parks in Manchester, and port facilities in Southampton, this cylinder keeps side-shifters, fork positioners, rotators, and clamps moving with precision and consistency that operators genuinely rely on.
Ready to source?
Request specifications, pricing & lead times from our UK sales team.
What Makes This Forklift Attachment Cylinder Different
At first glance, a Φ40mm cylinder might look like a standard compact unit. In practice, the engineering decisions embedded in the HCYY11112031 go considerably deeper than dimensions. The bore-to-stroke ratio of 40 mm × 200 mm is deliberately chosen to maximise linear force in tight mounting envelopes — a common constraint on reach trucks, narrow-aisle machines, and multi-function clamp assemblies. The 450 mm installation distance gives mounting engineers measurable flexibility to accommodate varied attachment frames without custom machining. This is a cylinder built around the realities of real-world forklift maintenance teams in the UK, not just a specification sheet.
Compact Force Density
25 MPa working pressure delivers substantial push/pull force from a 40 mm bore — ideal for space-constrained forklift attachment frames where every millimetre counts.
High-Pressure Integrity
Maximum withstand pressure rated at 35 MPa provides a meaningful safety margin under shock loads, sudden directional changes, and emergency stops common in UK distribution centres.
Precision Sealing System
Multi-lip polyurethane seals combined with a chrome-hardened rod surface reduce internal bypass and extend service intervals — reducing unplanned downtime in high-throughput operations.
Lightweight Design
At just 6 kg, the cylinder contributes minimal dead weight to the attachment assembly, preserving the rated capacity of the host machine and reducing fatigue on mounting structures over time.
Technical Specifications
The following table reproduces the complete factory specification data for model HCYY11112031. When evaluating this forklift attachment cylinder against your system requirements, pay particular attention to the installation distance (450 mm), which determines the collapsed length of the assembly within your attachment frame. All pressure values are confirmed by in-house hydraulic bench testing before shipment.
* Trip and installation distance values are in millimetres (mm). All pressure figures represent continuous rated values at ambient temperature.
How the Cylinder Works — Principle, Materials & Application Scenarios
▶ Operating Principle
Pressurised hydraulic fluid — typically ISO VG 46 or VG 68 mineral oil — enters the cap end port to extend the rod, and the rod end port to retract. Double-acting operation provides positive controlled force in both directions, which is essential for attachment functions like clamping, tilting, and side-shifting that require active force on the return stroke. The Φ40 mm bore generates a push force of approximately 31.4 kN at full 25 MPa system pressure, and a pull force of around 22.6 kN based on the Φ20 mm rod cross-section.
▶ Material Construction
The barrel is cold-drawn seamless steel tube, honed internally to Ra 0.4 μm for optimal seal contact. The piston rod is 45# medium-carbon steel, induction-hardened and hard-chrome plated to HRC 58–62 and surface finish Ra 0.2–0.4 μm, resisting scoring in environments where fine particulate contamination from warehouse floors and dock areas is common. End caps are CNC-turned from ductile cast iron, and all seals are polyurethane/NBR composite, rated for continuous service between -20°C and +80°C — suitable for unheated UK warehouse environments during winter months.
Typical Application Scenarios in the UK Market
Side-Shifter Attachments
E-commerce fulfilment centres, Midlands & South East
Fork Positioners
Paper & print distribution, Northern England
Rotating Clamps
Beverage & FMCG logistics, Scotland & Wales
Tilt Cylinder Replacement
Automotive parts, Tier-1 supplier plants, West Midlands
Key Advantages for UK Procurement Teams
✔
Drop-in Dimensional Compatibility
The 450 mm installation distance aligns with many OEM forklift attachment frames from Cascade, Bolzoni, and Meijer — reducing retrofit engineering hours for UK maintenance managers.
✔
Extended Service Intervals
Hard-chrome rod plating and precision-honed bore work together to minimise seal wear — many UK operators report exceeding 10,000 operating hours before first seal replacement.
✔
Competitive Supply Lead Times
Standard units shipped within 7–15 working days to UK ports including Felixstowe and Tilbury; expedited airfreight available for emergency breakdown replacement.
✔
Full Customisation Available
Port ends, clevis mounts, integrated position sensors, and alternative seal compounds (FKM for high-temperature environments) can all be specified on request.
Forklift Attachment Cylinder Series
The Φ40mm / 200mm stroke model is one unit within a complete series of forklift attachment hydraulic cylinders designed to cover the full range of compact and mid-range attachment applications. Browse the wider product family below, including related bore sizes and stroke options to match your specific machine and duty cycle.
Related Product
Forklift Attachment Cylinder — Φ70mm, 250mm Stroke
Higher-bore option for heavier duty attachment systems requiring greater push/pull force.
Related Product
Forklift Attachment Cylinder — Φ90mm, 265mm Stroke
Large-bore variant for heavy attachment cycles, rotators, and multi-function clamps.
Manufacturing Capability & Custom Engineering
Our manufacturing facility operates CNC turning centres, hydraulic bench-test rigs calibrated to 40 MPa, surface treatment lines capable of chrome plating rods from 12 mm to 200 mm in diameter, and CMM-verified quality gates at every production stage. The engineering team carries 18+ years of application experience specifically in mobile hydraulics and forklift attachment systems, meaning the product you receive has been validated against operating conditions comparable to those encountered in UK industrial environments — from unheated distribution sheds in winter to high-cycle port equipment in summer.
Custom cylinder configurations are a core competency, not an afterthought. UK customers regularly request modifications including: alternative port thread standards (BSP, ORFS, SAE), stroke lengths outside standard catalogue values, integrated cushioning on extend or retract stroke, stainless steel rod options for marine or food-industry environments, and bespoke paint or surface treatment for corrosion protection on outdoor attachments. Minimum order quantities for custom builds start from 10 units, with prototype samples typically available within 4–6 weeks of drawing approval.
🏭
ISO 9001:2015 Certified Facility
🛠
Custom Bore, Stroke & Mounting Options
✅
100% Pressure-Tested Before Shipment
✈
Air Freight Emergency Supply to UK
Customer Success: UK Third-Party Logistics Provider
🇳🇬 United Kingdom | 3PL Logistics | Warehouse Operations
Reducing Forklift Attachment Downtime by 67% at a Northampton Distribution Centre
A mid-sized third-party logistics operator running a 40,000 sq ft ambient distribution facility near Northampton was experiencing an average of 2.3 attachment cylinder failures per month across their fleet of 18 counterbalance forklifts. Their existing supplier’s replacement cylinders were consistently delivering seals that degraded within 4–5 months due to incompatibility with the facility’s hydraulic oil specification. Each failure triggered an average 11-hour asset downtime including parts procurement and on-site fitting.
After a technical consultation with our team, they switched their side-shifter cylinders to model HCYY11112031 with FKM seal upgrade, matched to their existing Mobil DTE 25 hydraulic oil. Over the following 14 months, total attachment cylinder failures dropped to fewer than 0.4 per month across the same fleet, representing a 67% reduction in cylinder-related downtime. The maintenance manager estimated the change saved the business approximately £38,000 in labour, rental substitution, and parts costs during that period.
“We’d been through three different cylinder suppliers in two years. The seal compatibility issue was something they actually diagnosed and solved, not just replaced like for like. Fourteen months in and we’ve barely touched the attachments.”
— Maintenance Manager, 3PL Operator, Northampton, UK
What UK Customers Say
★★★★★
“Ordered six units for our reach truck fleet. Delivery to our Leeds depot took nine working days — faster than expected. Cylinders have been running for seven months without a single seal issue.”
— James T., Fleet Engineering Manager, Yorkshire 3PL
★★★★★
“We needed a custom port thread to match our existing BSP hydraulic circuit. The sales team confirmed the modification and turned it around on the same unit without a lead-time penalty. Very practical to deal with.”
— M. Patel, Procurement Director, West Midlands Automotive Tier-1
★★★★★
“Price is very competitive compared to buying OEM replacements through our forklift dealer. The technical data sheet was also genuinely useful — gave our engineer everything needed to validate compatibility before ordering.”
— D. Kerr, Operations Manager, Scottish Cold Chain Operator
Frequently Asked Questions
Ready to Source Forklift Attachment Cylinders for Your UK Operation?
Send your specifications or OEM part number and our engineering team will respond with a technical match and competitive quote within 24 hours.
