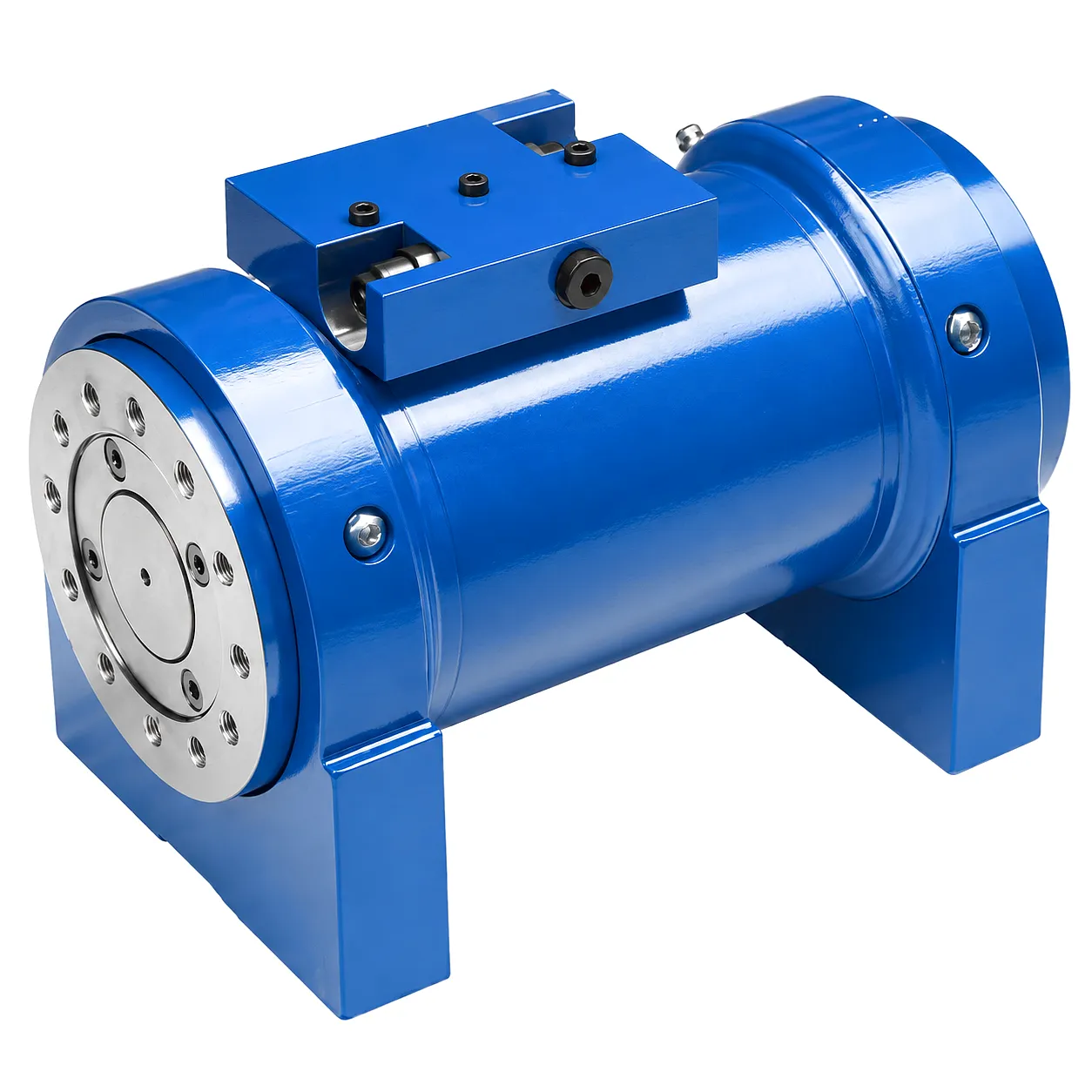

Hydraulic Rotary Actuator
Steering Cylinder
Engineered for heavy-duty rotary motion control, our hydraulic rotary actuator steering cylinder delivers 2800 N·m rated torque at 21 MPa working pressure — a robust solution for industrial steering, positioning, and actuation systems across the UK and global markets.
Hydraulic Rotary Actuator Steering Cylinder — Available for UK & Export Supply
What Is a Hydraulic Rotary Actuator Steering Cylinder?
A hydraulic rotary actuator steering cylinder is a compact, high-torque device that converts hydraulic pressure into controlled rotary motion. Unlike conventional linear cylinders, this actuator achieves up to 180° of rotation, making it the preferred choice wherever precise angular positioning or continuous steering control is demanded. The unit operates on standard hydraulic circuits, accepting oil flow to produce smooth, repeatable torque output — eliminating the mechanical complexity of rack-and-pinion or worm-gear assemblies in many applications.
In industrial practice, this type of hydraulic rotary actuator is valued for its direct-drive simplicity: no chains, no belts, no reduction gearboxes are required for the primary steering or positioning function. The result is a drivetrain that is inherently stiff, backlash-free, and able to hold position under side loads — characteristics that matter enormously in applications such as offshore deck machinery, agricultural steering axles, mobile crane slewing, and process-plant valve actuation across British industry.
Technical Specifications
Original factory data — no values altered or omitted.
| Parameter | Value |
|---|---|
| Rated Torque | 2800 N·m |
| Rated Pressure | 21 MPa |
| Rotation Angle | 180° |
| Displacement | 688 cc |
| Starting Pressure | Max 3.1 MPa |
| Maximum Bending Torque — Cross-Over Installation | 16900 N·m |
| Maximum Bending Torque — Cantilever Installation | 7100 N·m |
| Load in Diameter Direction | 2300 kg |
| Load in Length Direction | 1800 kg |
Operating Principle, Materials & Construction
The core operating principle of the hydraulic rotary actuator steering cylinder is the vane or helical spline mechanism. Pressurised hydraulic oil enters the working chamber, acting against an internal vane or piston connected rigidly to the output shaft. As differential pressure builds across the vane, a torque is generated that drives the shaft through its 180° travel. When the oil ports are reversed, the shaft returns. The geometry means that torque output is near-constant throughout the rotation arc — unlike rack-and-pinion arrangements, which can develop force variation at the extremes of travel.
Material selection reflects the demands of British industrial environments, where temperature swings, contaminated hydraulic fluids, and prolonged duty cycles are everyday realities. The cylinder body is typically machined from ductile iron or high-strength steel, offering the combination of pressure containment integrity and resistance to shock loading that standard cast iron cannot provide. Shaft seals are multi-lip polyurethane or PTFE-faced designs, chosen for their compatibility with mineral oil, biodegradable ester fluids, and water-glycol fluids that are increasingly common in UK manufacturing sites with environmental compliance requirements.
Internal sliding surfaces are precision-honed to achieve tolerances that maintain effective sealing while minimising the starting pressure — held to a maximum of 3.1 MPa — so that the actuator responds crisply at low system pressures. This low breakaway characteristic makes the steering cylinder highly suitable for sensitive positioning tasks where coarse, jerky motion would compromise product quality or operator safety. Every unit is hydrostatically proof-tested before despatch.
Rated Torque
2800 N·m
Rotation Arc
180°
Rated Pressure
21 MPa
Cross-Over Bending
16900 N·m
Where This Hydraulic Rotary Actuator Steering Cylinder Is Used
MARINE & OFFSHORE
Steering gear for workboats, deck cranes, anchor windlass drives, and ROV manipulator systems operating in the harsh North Sea environment around UK coastal waters.
AGRICULTURE
Steering axles on large self-propelled sprayers, combine harvesters, and specialist root crop harvesters common across the English and Scottish farming regions.
CONSTRUCTION & CIVIL
Slewing rings on compact excavators, pile driver positioning heads, and tunnel boring auxiliary steering — applications where high bending resistance matters as much as torque.
PROCESS INDUSTRY
Quarter-turn valve actuation on large bore process pipework, diverter gate drives in cement and grain handling plants, and rotary indexing tables in UK automotive manufacturing.
RENEWABLE ENERGY
Nacelle yaw control assist and blade pitch fine-adjustment on offshore wind platforms — comparable in function to the dedicated Wind Turbine Hydraulic Pitch Cylinder in our range.
HEAVY VEHICLES
Rear-axle steering on multi-axle low-loaders and heavy haulage trailers operating on UK road networks, where tight urban turning circles demand compact, high-torque actuation without adding significant chassis weight.
Six Reasons Engineers Choose This Actuator
Zero Backlash Output
The direct hydraulic drive architecture eliminates the dead-band associated with geared actuators. Positioning repeatability is achievable to within fractions of a degree, which matters in precision assembly and measurement applications.
Extreme Bending Resistance
Cross-over installation bending torque reaches 16900 N·m — over six times the rated working torque. This structural reserve means the actuator survives shock events and off-axis loading that would destroy a conventional pivot-and-lever system.
Compact Form Factor
Achieving 2800 N·m within a short cylindrical housing keeps the centre-of-gravity low and packaging tight — a genuine advantage in mobile plant where counterweight budgets are fixed and envelope dimensions are constrained by transport regulations.
Low Starting Pressure
With a maximum starting pressure of 3.1 MPa, the actuator responds at low hydraulic standby pressure, reducing the duty cycle of the hydraulic power unit and contributing to overall system energy efficiency — an increasingly important factor in UK machine design under current energy cost pressures.
High Axial Load Capacity
Rated to carry 1800 kg in the length direction and 2300 kg in the diameter direction, the unit handles combined steering and thrust loads in applications such as rudder actuation without requiring a separate thrust bearing arrangement.
Installation Flexibility
Supports both cross-over (trunnion) and cantilever mounting, with clearly defined load envelopes for each. Engineers designing retrofit steering upgrades for existing plant can select the configuration that best suits the existing chassis geometry, reducing fabrication cost.
Related Products from Boom Cylinders
Our hydraulic cylinder programme covers a broad range of actuation requirements. For renewable energy pitch control systems, the Wind Turbine Hydraulic Pitch Cylinder is engineered specifically for the cyclic loading and corrosive atmosphere found at offshore wind turbine hubs. For heavy construction support and lifting applications, the Rear Frame Support Cylinder provides high-capacity linear actuation with robust end-cap design suited to long-term static holding loads. Both products share the same manufacturing standards and are available with the same customisation and technical support service as the rotary actuator range.
Customer Success
Verified project outcomes from supply partnerships across UK and European industry.
Case Study · Marine Sector · Aberdeen, Scotland
North Sea Offshore Support Vessel — Hydraulic Steering Retrofit
A Scottish marine engineering contractor based in Aberdeen was tasked with overhauling the steering system on a 20-year-old offshore support vessel scheduled for a five-year class survey. The original rack-and-pinion steering gear had developed excessive backlash and required a full replacement. After reviewing specifications, their engineering team selected the hydraulic rotary actuator steering cylinder as a drop-in upgrade, fitting within the existing rudder stock flange interface without structural modification to the hull. The unit’s 2800 N·m torque output exceeded the original gear’s rated capacity by 12%, while the cross-over installation bending torque of 16900 N·m satisfied the Bureau Veritas load case calculations for emergency manoeuvring in beam sea conditions.
Outcome: Vessel returned to North Sea operations 11 days ahead of dry-dock schedule. Steering response time reduced by approximately 30% compared to the worn legacy system. No warranty claims filed during the subsequent 18 months of operation.
“We’ve fitted these actuators into three combine harvester platforms now. Steering feel is noticeably more responsive than the cylinders we used previously, and the low breakaway pressure means the operator doesn’t notice any lag when changing direction at low engine speed. Would not hesitate to specify again.”
James Hartley
Hydraulic Systems Engineer · Agricultural OEM, Lincolnshire
“Sourcing rotary actuators with documented bending torque data at this price point is genuinely difficult in the UK market. Boom Cylinders provided full dimensional drawings and a test certificate with the batch shipment. The units have been running on our valve actuation skids for fourteen months with zero leakage.”
Sandra Nwosu
Procurement Manager · Process Plant Contractor, Birmingham
“We needed a custom shaft keyway and a modified port orientation to clear our existing pipework. The Boom Cylinders technical team turned around a confirmed drawing within 48 hours and the modified units arrived within the agreed lead time. That kind of responsiveness from a supplier at this volume level is rare.”
Tom Gallagher
Design Director · Mobile Plant Manufacturer, West Midlands
Manufacturing Capability & Custom Engineering
Boom Cylinders is manufactured at a modern, ISO 9001-certified hydraulic component facility with dedicated CNC turning, honing, and assembly lines for rotary actuator products. Our standard hydraulic rotary actuator steering cylinder is held in production stock and can typically be despatched within five to ten working days to UK addresses. For applications that require modifications, the factory’s engineering team handles custom work as a core part of the business — not as an exception process that causes delays.
Customisation options that have been delivered for UK customers include: alternative port thread forms (BSPP, JIC, SAE flanged), shaft end modifications including spline profiles and custom keyways, extended rotation angles beyond 180° on request, alternative seal compounds for biodegradable fluid compatibility, special surface treatments including hard chrome and HVOF thermal spray for corrosive environments, and complete assembly with integrated position feedback transducers for closed-loop control. Every custom batch is hydrostatically tested to 1.5 times rated pressure before shipment, with test records included in the documentation package.
Frequently Asked Questions
Ready to specify the right hydraulic rotary actuator steering cylinder for your project?
Our engineering team responds to technical enquiries within one business day.
