Hydraulic Solutions for Material Handling — United Kingdom

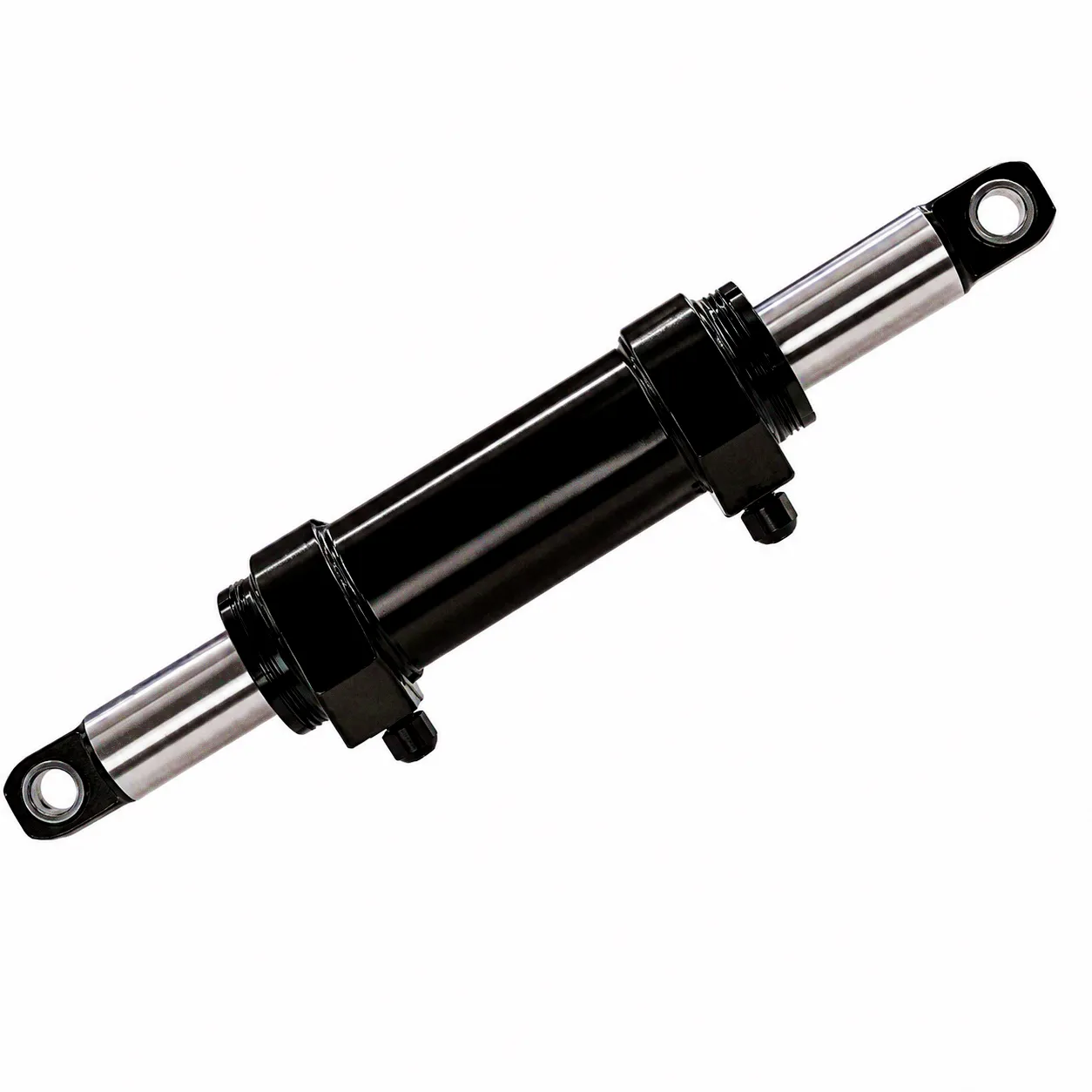

Double-Acting Forklift Steering Cylinder
Built for the demanding pace of UK warehouse and logistics operations, the double-acting forklift steering cylinder from Boom Cylinders delivers the precise hydraulic force needed to keep heavy-load forklifts responsive, safe, and productive across every shift. Whether you are equipping a fleet of counterbalance trucks in a Manchester distribution hub or sourcing replacement cylinders for reach trucks operating in a Bristol cold-store, this cylinder is engineered to perform where it matters most.
What Is a Double-Acting Forklift Steering Cylinder?
A double-acting forklift steering cylinder is a hydraulic actuator that applies controlled force in both the extend and retract directions, giving a forklift precise, responsive steering control under full load. Unlike single-acting designs that rely on a return spring, the double-acting configuration uses pressurised fluid on both sides of the piston. This means the steering response is equally immediate whether the operator is turning left or right, even when navigating tight warehouse aisles with a multi-tonne pallet load elevated on the mast. The cylinder converts hydraulic pressure from the steering circuit into mechanical linear movement, which is transferred through the steering linkage to the rear axle wheels.
In practical UK logistics environments — from third-party logistics (3PL) centres in the Midlands to food distribution facilities in Yorkshire — the reliability of the forklift steering cylinder is not a convenience issue; it is a health and safety requirement. A cylinder that loses response under load puts operators and pedestrians at serious risk. That is why the engineering specifications behind model HCYY11112002 reflect real-world duty cycles, not just catalogue performance figures.

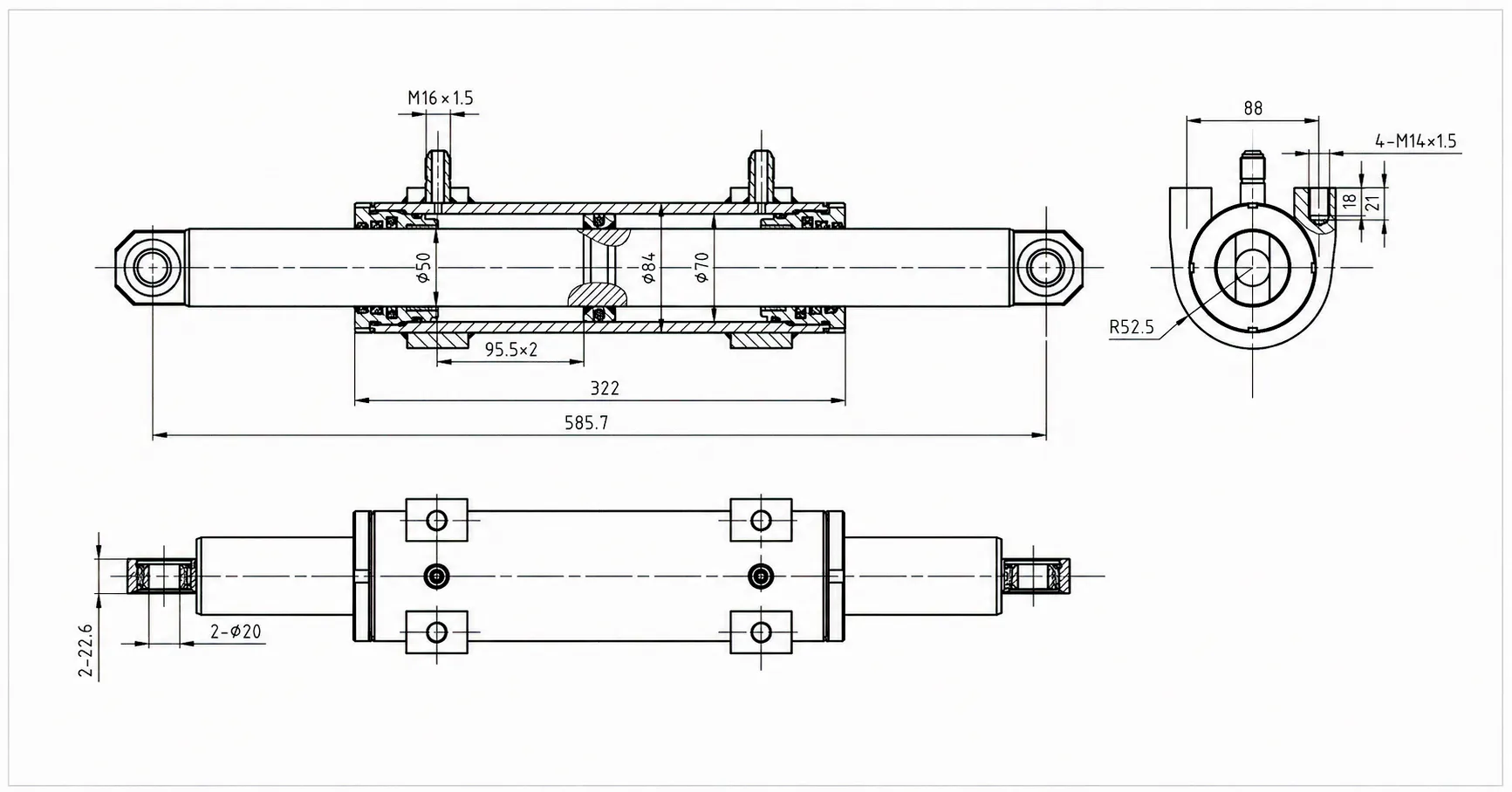

기술 사양
| Forklift Steering Cylinder | ||||||
|---|---|---|---|---|---|---|
| 원통형 모델 | 명세서 | 작동 압력 | 최대 내압력 | Trip | Installation Distance | 무게 |
| HCYY11112002 | Φ70 x Φ50 x 95.5 x 2 | 16 MPa | 24 MPa | 96.5 x 2 | 585.7 mm | 16.5 kg |
Operating Principle & Material Construction
The cylinder barrel is precision-honed from high-tensile seamless steel tube, producing a bore surface finish that maximises seal life and minimises internal leakage. The piston rod is manufactured from 45# high-carbon steel with hard chrome plating applied to a minimum depth that complies with heavy-duty industrial standards — this chromium layer resists surface corrosion from the condensation and temperature cycling common in UK cold-store forklift applications. Bi-directional hydraulic action is achieved through precision-machined piston seals made from polyurethane composite, which offer significantly lower friction coefficients than traditional rubber seals while maintaining a rated working pressure of 16 MPa and withstanding burst pressures up to 24 MPa.
The end caps are threaded and torqued to specification, eliminating weld-zone fatigue that can compromise cylinders subjected to repeated micro-shock loads during tight cornering under load. Internal port threading is machined to BSP (British Standard Pipe) standard as standard, simplifying integration with existing UK forklift hydraulic circuits and reducing the installer’s need for conversion fittings. The cylinder weighs 16.5 kg and has an installation distance of 585.7 mm, making it directly interchangeable with common OEM fitments across several widely used forklift platforms.
Where This Cylinder Is Used in the UK
🛒
Warehouse & Distribution
Used in counterbalance and reach trucks operating in high-throughput UK fulfilment centres — e.g., Amazon, Ocado, and major 3PL operators — where steering accuracy under constant load cycle is critical.
🏭
Manufacturing & Steel Plants
Heavy-capacity forklifts in UK steel mills and automotive plants — particularly in Birmingham, Sheffield, and Sunderland — rely on robust double-acting steering cylinders to handle coil and slab movements safely.
⛵
Port & Dockside Handling
Felixstowe, Southampton, and Tilbury ports operate large forklift fleets in corrosive salt-air environments. The chrome-plated rod and high-pressure sealing of this cylinder make it an excellent choice for port-side container handling.
❄
Cold-Store & Food Logistics
Low-temperature environments put extra stress on seals and hydraulic fluid viscosity. The polyurethane seal compound selected for this cylinder retains elasticity at temperatures as low as -20°C, maintaining steering response in chilled and frozen warehouse operations.
Key Advantages
▶ Bidirectional Precision Control
Active hydraulic force in both directions eliminates the lag associated with spring-return designs, giving the operator immediate, proportional steering feel even when performing tight turns with maximum rated loads.
▶ High-Pressure Durability
Rated at 16 MPa continuous working pressure with a verified withstand rating of 24 MPa, this forklift steering cylinder accommodates pressure spikes from emergency steering manoeuvres without seal degradation or structural failure.
▶ Long Service Life
Hard-chrome rod surface combined with precision bore honing dramatically reduces internal wear rates. Under typical UK warehouse duty cycles of two-shift operation, expected seal life substantially exceeds standard OEM replacement intervals.
▶ Drop-In Compatibility
With a 585.7 mm installation distance and BSP-standard port threading, this cylinder fits directly into a wide range of forklift steering circuits without requiring custom adapters or bespoke hose routing modifications.
▶ Corrosion Resistance
The barrel exterior is treated with an industrial-grade rust-inhibiting coating, protecting the cylinder in the humid, condensation-prone conditions typical of UK ambient-to-cold-store transition zones — a common failure point for lesser-quality cylinders.
▶ Customisation Available
Non-standard bore sizes, rod diameters, stroke lengths, and port configurations are available on request through our engineering team. UK fleet operators sourcing for multi-brand truck fleets can consolidate to a single supplier with a tailored cylinder programme.
Related Cylinder Products
Boom Cylinders supplies a complete range of hydraulic cylinders for material handling, lifting, and construction applications. If your application requires a different cylinder type, you may also be interested in:
Forklift Cylinder Series
The full Boom Cylinders forklift range covers steering cylinders, tilt cylinders, lift cylinders, and mast hydraulic assemblies — engineered for compatibility across the most widely deployed forklift brands operating in the United Kingdom.
Manufacturing & Custom Engineering Capability
Boom Cylinders operates a dedicated hydraulic cylinder manufacturing facility equipped with CNC deep-hole boring, precision honing lines, automated hard-chrome plating, and multi-axis welding cells. Our engineering team works directly with UK fleet managers, hydraulic repair workshops, and plant hire companies to design and produce cylinders to specific customer drawings or OEM replacement requirements. Bore diameters from 40 mm to 400 mm are available within our standard production capability; larger or specialised configurations are supported through our project engineering service.
Custom seal kits, non-standard port configurations, special surface treatments, and bespoke mounting arrangements are all handled in-house. For UK buyers ordering in volume — whether for a single fleet refurbishment programme or ongoing MRO procurement — we offer competitive pricing, consistent lead times, and QC documentation including dimensional inspection reports and pressure-test certificates. All cylinders can be shipped DDP to any UK postcode through our established freight network.
Customer Success — Real-World UK Applications
Case Study — UK Food Distribution, West Midlands
Fleet Steering Cylinder Refurbishment — 28 Electric Counterbalance Trucks
A regional chilled food distribution operator based near Coventry contacted our UK sales team after experiencing recurring steering cylinder failures across their 28-truck fleet of 3-tonne electric counterbalance forklifts. Cylinders were failing at the rod seal after 14-16 months of two-shift operation — well below the expected service interval. After reviewing the application data, our engineers recommended the HCYY11112002 double-acting forklift steering cylinder with an upgraded seal specification suited to the -5°C to +15°C temperature band typical of their chilled DC environment.
The full fleet was refurbished over a scheduled maintenance weekend using cylinders supplied by Boom Cylinders. At the 18-month review, zero steering cylinder failures had been recorded — representing a complete elimination of the previous failure mode and removing an estimated £11,400 in annual reactive maintenance cost from the operator’s budget. QC documentation was provided in a format compatible with the operator’s ISO 22000 maintenance record requirements.
★★★★★
“We supply hydraulic replacement parts to forklift maintenance companies across the North West. The Boom Cylinders HCYY11112002 has become our go-to steering cylinder — consistent quality, correct dimensions every time, and the pressure-test certs save our clients’ engineers hours of incoming inspection work.”
— Parts Procurement Manager, Hydraulic Repair Distributor, Manchester, UK
★★★★★
“We operate a mixed fleet at our Tilbury terminal — several makes of 7-tonne forklift, all needing different cylinder specs. Boom Cylinders’ team sized and sourced a compatible steering cylinder for each platform and delivered everything on a single shipment. The drop-in fit was perfect. No warranty issues in 14 months.”
— Fleet Maintenance Supervisor, Port Container Handling, Essex, UK
★★★★★
“Price was competitive — roughly 30% below the OEM list price — and performance has been identical. We ordered 10 units as a trial and have since placed a standing order for quarterly delivery. The custom seal option for our low-temp environment was a genuine differentiator.”
— Engineering Director, Cold-Store Logistics Operator, Yorkshire, UK
자주 묻는 질문
Boom Cylinders — Hydraulic Cylinder Specialists
Ready to Source Your Forklift Steering Cylinder?
UK fleet operators, hydraulic repair workshops, and forklift parts distributors — contact our sales team for competitive pricing, fast delivery, and full technical support.
