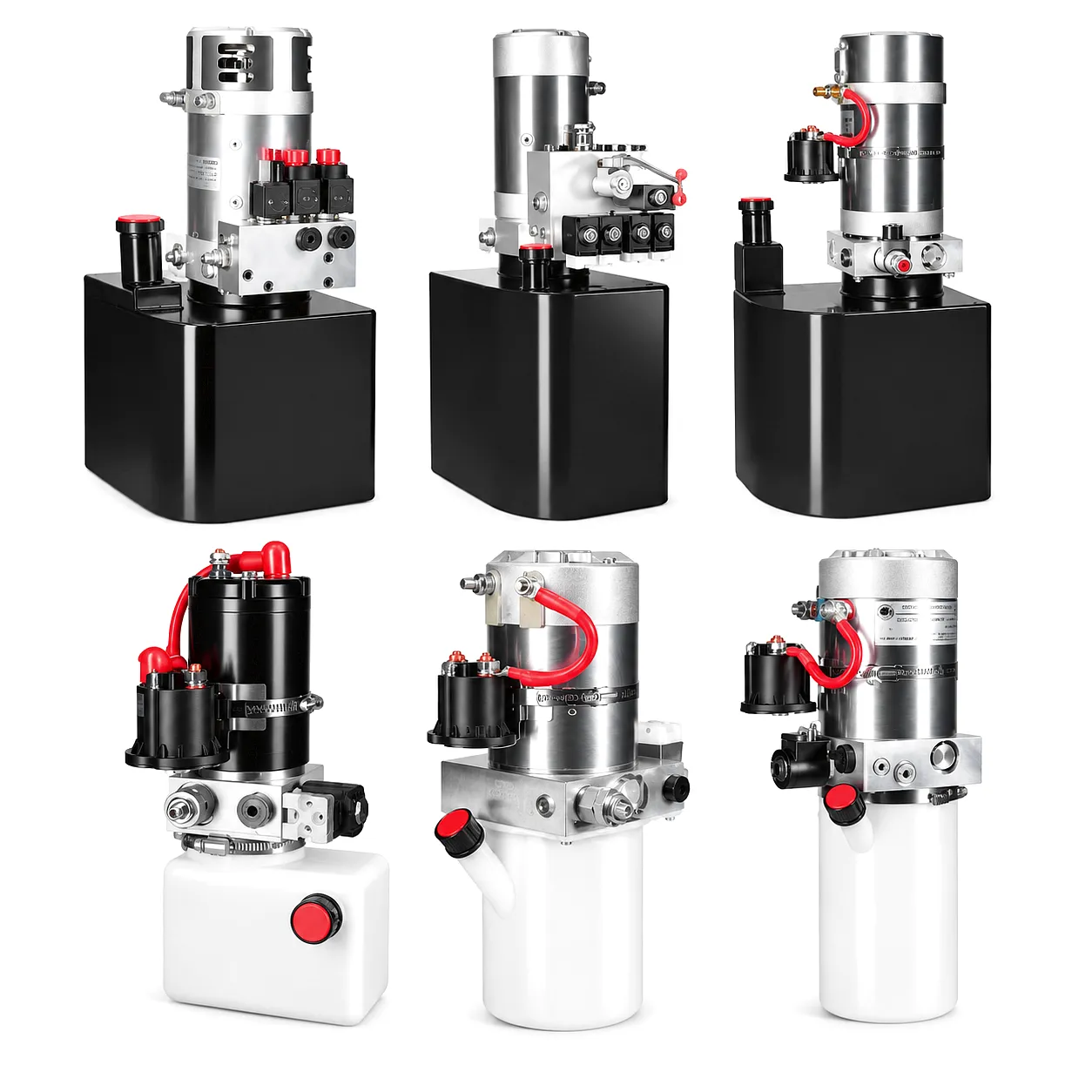

Compact Hydraulic Power Pack

Ultra-Low Noise Operation

Noise levels at or below 70 dB, achieved through a high-efficiency, small-displacement gear pump that runs smoothly even at rated flow. Ideal for indoor logistics halls and vehicle workshop environments where excessive noise creates compliance and welfare concerns.

200+ Hydraulic Circuit Configurations

No two applications are identical. Through different combinations of hydraulic valves — directional, pressure-relief, check, and proportional — buyers access more than 200 distinct circuit layouts without redesigning the core unit. This makes the compact hydraulic power pack exceptionally flexible for OEM and aftermarket integration alike.

High-Strength Aluminium Valve Block

The manifold is machined from aerospace-grade aluminium alloy — lighter than cast iron alternatives yet resistant to corrosion and fatigue under cyclical pressure loading. In damp UK environments such as coastal agricultural settings or unheated warehouse stores, this material choice meaningfully extends service life.

Zero-Leakage Cartridge Valves

High-performance cartridge valves with near-zero leakage maintain system pressure when the pump is at rest, reducing energy draw and protecting downstream actuators. Each valve is individually pressure-tested before dispatch, with documentation available on request for UK quality audits and ISO compliance reporting.

Proportional Speed Control

An optional electromagnetic proportional reversing valve enables smooth, continuous control of actuator speed rather than simple on/off switching. This matters wherever precise positioning is required — platform lifts in passenger vehicle workshops, tipping bodies on agricultural trailers, and automated conveyor diverters in UK distribution centres.

DC & AC Motor Flexibility

DC motor options at 2 V, 24 V, 36 V, and 48 V serve battery-powered mobile equipment. AC motor options at 110 V, 220 V, and 380 V cover single-phase workshop supplies and three-phase industrial installations throughout the UK, from a Scottish distillery’s bottling line to a South-East England automotive plant.

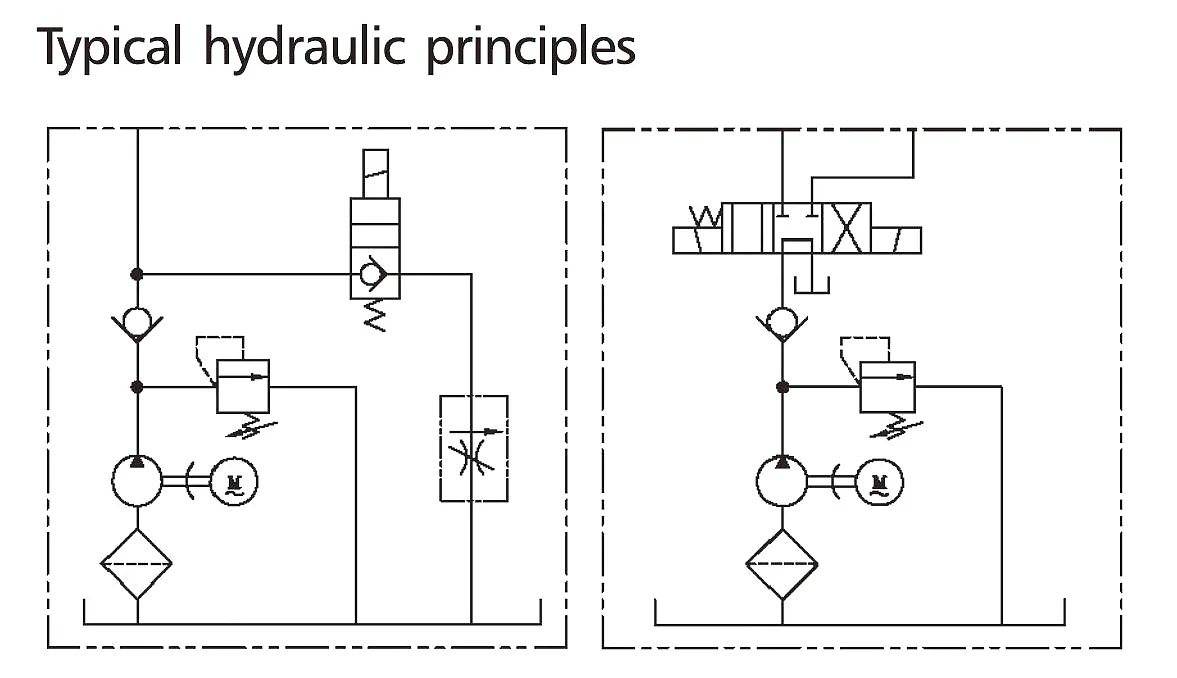

Electric Motor Drive

The motor (DC or AC) spins the gear pump at a set RPM. The pump draws hydraulic fluid from the reservoir and pressurises it into the valve block manifold, generating controlled flow.

Valve Block Routing

The aluminium-alloy manifold houses the selected valve combination — directional control, relief, check, and optionally proportional valves. Each valve’s pressure loss is minimised to preserve energy efficiency.

Actuator Control

Pressurised oil reaches the hydraulic cylinder or motor. Return oil flows through the throttle valve for controlled, steady descent — preventing the hydraulic shock that damages seals and fittings over time.

Pressure Retention

Zero-leakage cartridge valves hold load pressure without the pump running — a critical safety and energy-efficiency feature for lifting platforms and clamping fixtures used across UK manufacturing sites.

Precision-bored bore and hardened rod for demanding tilt operations in counterbalance and reach trucks. Full fluid specification compatibility with standard power pack hydraulic oil grades.

View Product

Compact envelope design suited to tight steering axle assemblies. Matched port sizing (G1/4 or M16x1.5) mirrors the power pack port thread options for clean, leak-free installation.

View Product

“We needed a hydraulic power pack that could handle the cold, damp conditions in our unheated warehouse without corroding within two seasons. These units have been running for 18 months without a single seal failure. The noise level is genuinely lower than what we replaced — staff on the picking floor can hold a conversation again.”

James H. — Operations Manager, 3PL Warehouse, Milton Keynes

“The proportional valve option was the reason we chose Boom Cylinders over two other UK suppliers. Being able to feather the speed of our platform lift rather than just banging it up and down has made a real difference to how the technicians work. Lead time was seven working days — shorter than the quoted 10.”

Rachel T. — Purchasing Director, Automotive Service Equipment, West Midlands

“We run a mixed AC and DC fleet — some machines on 380 V three-phase, others on 24 V battery packs. Having a single supplier who can configure to both without redesigning the whole valve block saved our engineering team considerable time. The technical data pack was detailed enough to satisfy our insurance auditors first time.”

David F. — Chief Engineer, Quarrying Equipment Manufacturer, South Wales
