Crawler Crane Lift Cylinder — Heavy-Duty Hydraulic Power for Critical Lifting Operations

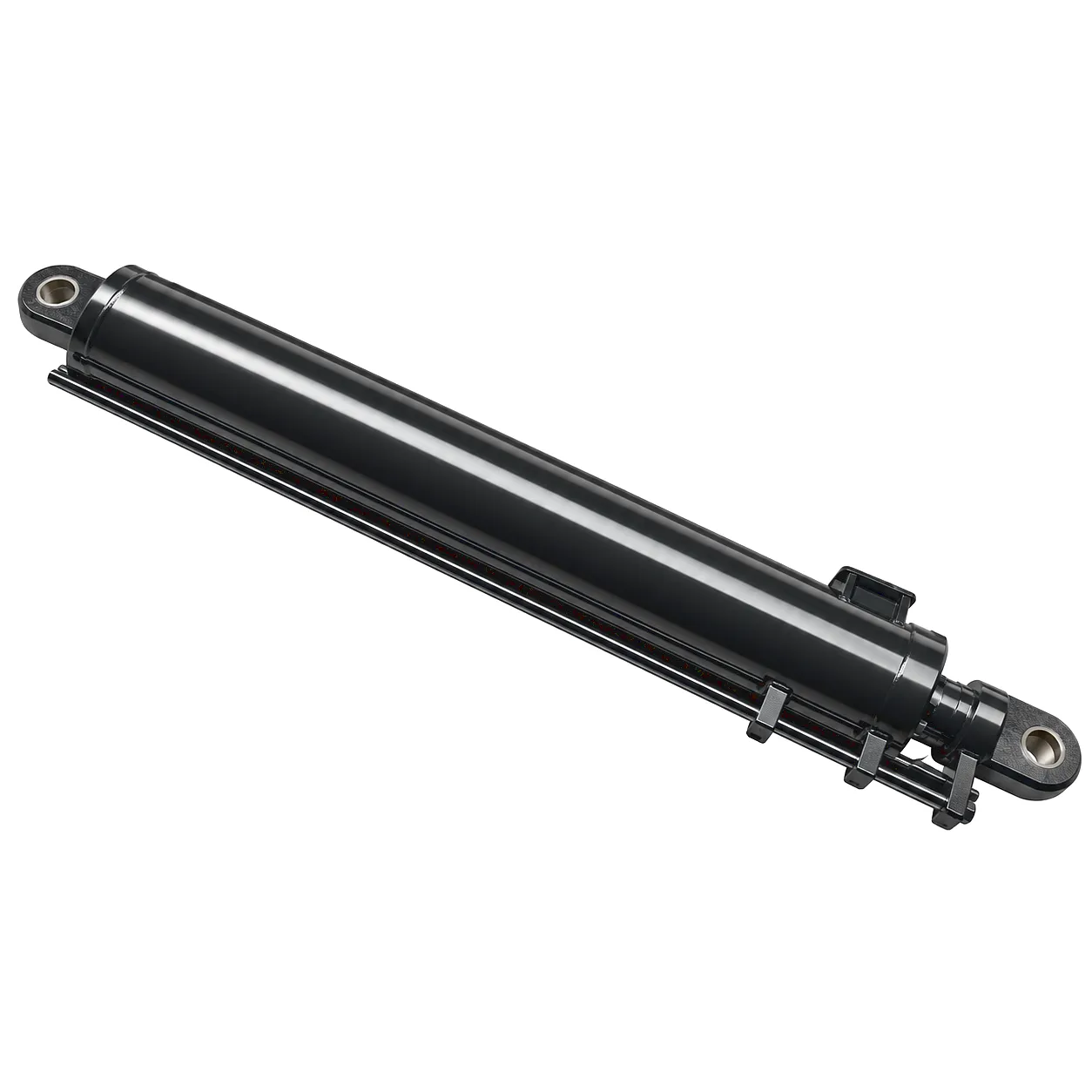

Engineered for the most demanding crawler crane applications across UK construction, infrastructure, and heavy-lift sectors, the crawler crane lift cylinder (Model HCYY11112018) delivers precision hydraulic force where structural reliability is non-negotiable. With a bore diameter of Φ280mm, a rod diameter of Φ160mm, and a rated working pressure of 31.5MPa, this unit represents the convergence of metallurgical precision and field-proven hydraulic engineering — built to operate across thousands of duty cycles without compromise.

What Is a Crawler Crane Lift Cylinder and Why Does It Matter?

A crawler crane lift cylinder is the primary hydraulic actuator responsible for raising and positioning the crane’s boom under full working load. Unlike mobile crane cylinders that endure frequent repositioning cycles, crawler crane lift cylinders must sustain enormous static and dynamic forces over extended periods — often holding loads in mid-air for minutes or hours while site operations proceed around them. The consequences of even minor seal degradation or rod surface imperfection in this environment are immediate and potentially catastrophic, which is why the engineering tolerances governing these components are substantially tighter than standard industrial hydraulic cylinders.

In the UK, crawler cranes are routinely deployed in bridge construction, nuclear facility maintenance, offshore wind turbine erection at coastal sites, and inner-city high-rise projects where ground conditions make wheeled cranes impractical. The lift cylinder at the heart of these machines must therefore be designed not just for raw force output, but for consistent, predictable performance across the wide temperature range and variable humidity typical of British working environments — from the damp winters of Scotland to the comparatively warmer summers of southern England.

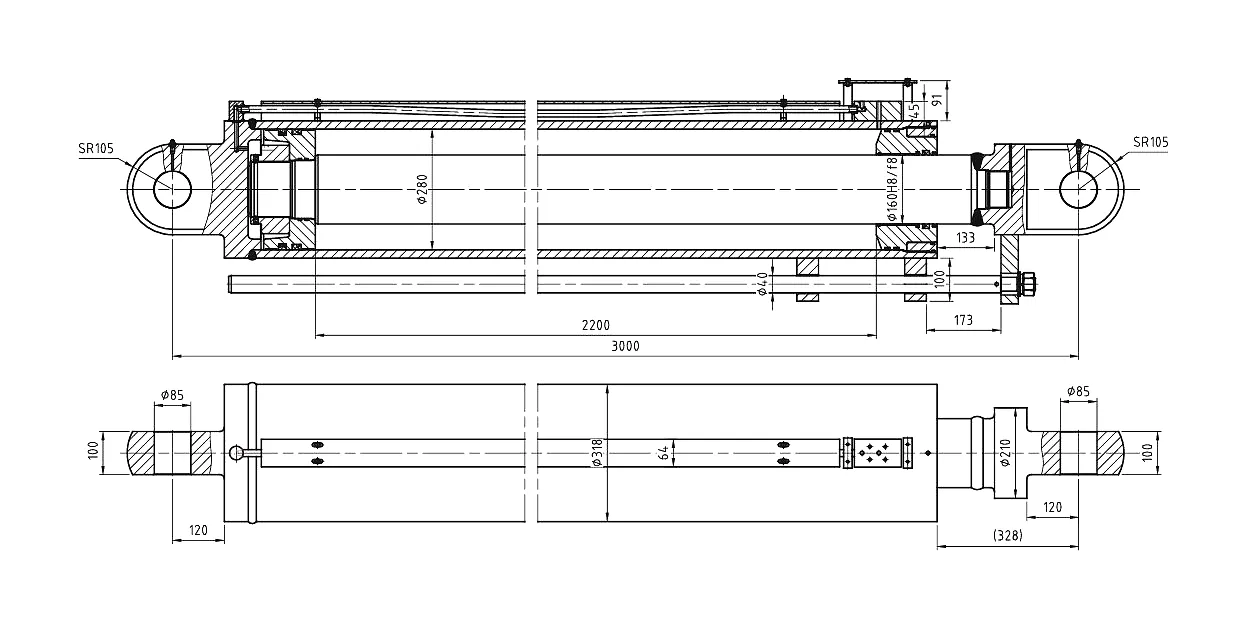

Technical Specifications — Lift Cylinder

ℹ All parameters are factory-tested values. Custom specifications available upon request for non-standard crawler crane configurations.

Engineering Principle, Materials & Operating Conditions

The HCYY11112018 operates as a double-acting hydraulic linear actuator, meaning pressurised oil drives the rod in both extension and retraction directions — a critical requirement for boom angle control in variable-load crawler crane applications. Hydraulic fluid at up to 31.5MPa enters the cylinder through precision-machined port connections, acting on the piston face (bore area: ~616 cm²) to generate the extension force that raises the boom. The 40MPa maximum withstand pressure specification provides a substantial safety margin — over 25% above rated working pressure — protecting the unit against pressure spikes that arise during dynamic load conditions such as sudden load catches or boom wind loading.

The cylinder barrel is manufactured from high-grade seamless steel tubing — typically 45# or 27SiMn alloy steel — precision honed on the inner bore to Ra 0.4µm surface finish. This level of bore surface quality is what allows the polyurethane lip seals and PTFE guide rings to achieve both low friction and extended service life simultaneously. The piston rod is manufactured from 40Cr alloy steel, ground, polished, and hard chrome plated to a minimum 25µm thickness, with a micro-hardness of HV800 or above. Chrome plating at this specification resists both abrasion from dust and grit — which is ever-present on UK construction sites — and the mild corrosion that damp British operating environments would otherwise accelerate on an unprotected steel surface.

Typical Application Scenarios Across UK Industry

The HCYY11112018 crawler crane lift cylinder has been deployed across the full breadth of heavy-lift operations common to UK infrastructure development. In bridge construction — from Merseyside road crossing upgrades to Highland railway viaducts — crawler cranes lifting precast concrete segments require lift cylinders capable of holding position precisely for extended periods while segments are grouted into place. The 3000mm installation distance of this model suits mid-size lattice boom crawler cranes in the 100–300 tonne lifting capacity range, which represent the most commonly deployed class for UK civil engineering contracts.

Also in Our Truck & Crane Cylinder Range

Complete hydraulic cylinder solutions for crawler cranes, truck cranes and construction equipment — manufactured to the same exacting standards.

🏴️ UK — Offshore Wind Foundation Installation · North Sea, 2024

A major UK-based marine construction contractor sourced two HCYY11112018 lift cylinders to replace ageing OEM units on their 250-tonne lattice boom crawler crane deployed at a North Sea wind turbine foundation project. The site environment — salt air, temperatures regularly below 5°C, and continuous 12-hour shift operation — was considered extreme by their maintenance team’s standards. After 14 months of operation across two winter seasons, neither cylinder has required seal replacement or shown any measurable rod surface degradation. The contractor has since placed a standing order for the same model as their preferred replacement specification across their crawler crane fleet.

“We’d been through two different suppliers’ cylinders in the three years before these. The chrome finish on the rods is noticeably heavier-duty and the seals haven’t wept a drop — even after a Scottish winter.” — Fleet Maintenance Manager, Marine Construction, Aberdeen

Manufacturing Capability & Custom Engineering Service

Our production facility operates a dedicated large-bore hydraulic cylinder manufacturing line capable of producing cylinders with bore diameters from 50mm up to 500mm and stroke lengths up to 6000mm. CNC deep-hole boring machines, precision honing lines, and automated hard chrome plating tanks give us full in-house control over every critical surface in the cylinder assembly. This is not a trading company sourcing finished goods — it is a manufacturing business where engineering decisions are made on the factory floor, not passed upstream to unknown sub-suppliers.

For UK clients working with legacy crawler crane models where original cylinder drawings are unavailable, our reverse-engineering service allows us to produce replacement cylinders from a dimensional survey of the original unit. Non-standard port configurations, custom cushioning arrangements, integrated position sensors, and special coating requirements can all be accommodated within our standard project engineering workflow. Minimum quantities for custom projects start from a single unit — there is no volume barrier to accessing our full engineering capability.

📧 Get a Custom Quote — [email protected]

HCYY11112018 vs. Typical Market Standard — Performance Comparison
