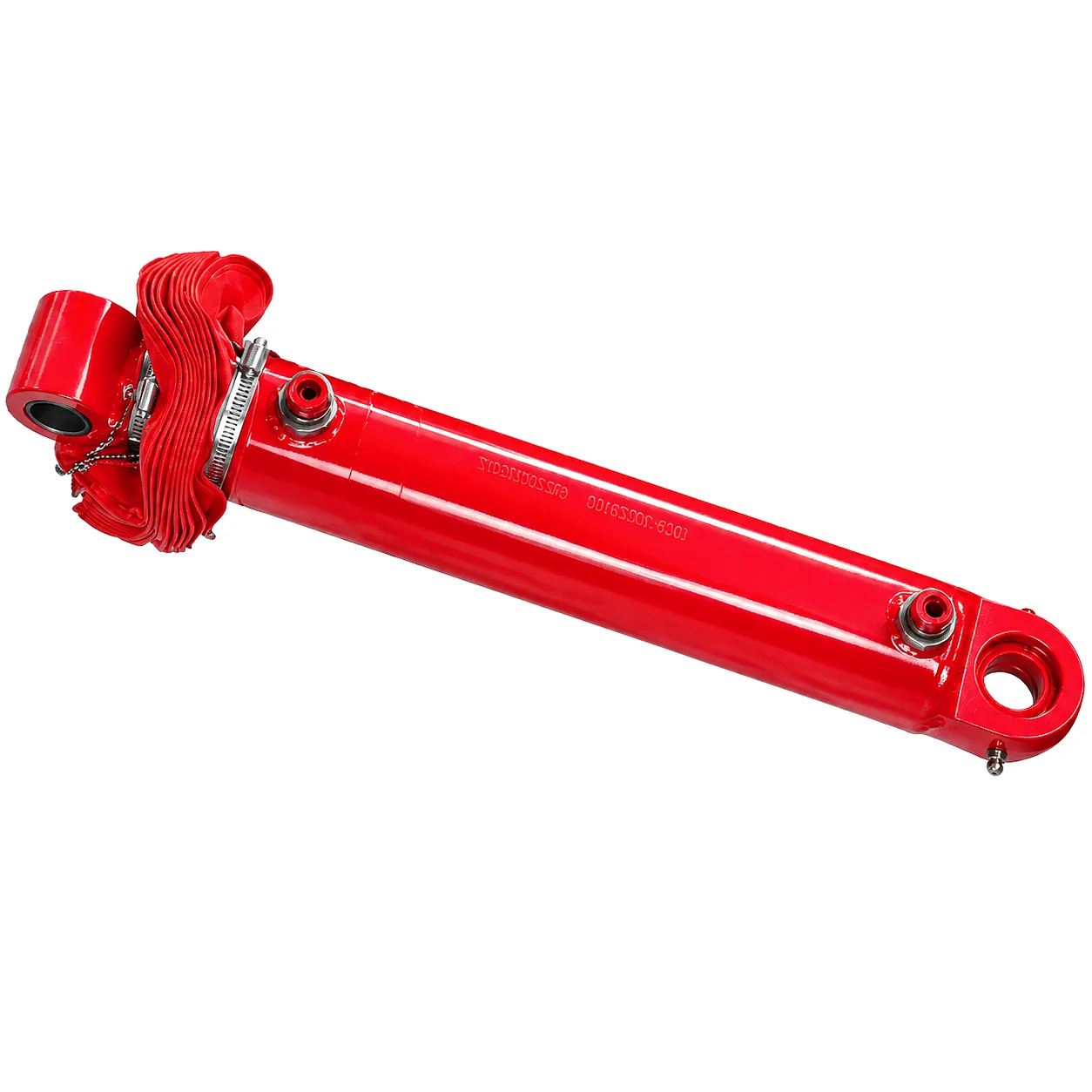

Aerial Platform Steering Cylinder (320mm Stroke)

Operating Principle

The HCYY11112012 is a double-acting cylinder: pressurised hydraulic fluid enters alternately through the cap-end and rod-end ports, driving the piston and rod in both directions. This bidirectional actuation allows the platform’s steering control valve to push the front axle wheels left or right with equal, metered force. The sealed piston divides the cylinder bore into two working chambers, each rated to withstand up to 32 MPa peak pressure without deformation or seal failure — a critical safety margin during emergency steering corrections on slopes.

Material Construction

The cylinder barrel is produced from seamless cold-drawn steel tube, honed internally to Ra 0.4–0.8 µm to extend seal service life and reduce static friction. The piston rod is ground from 45# high-carbon steel, hard chrome plated to 0.03–0.05mm depth for corrosion resistance and surface hardness exceeding HRC 58. End caps, clevises, and mounting flanges are machined from ductile iron or structural steel forgings, with all threaded connections locking under vibration. Seals are polyurethane and PTFE composite, rated beyond 100°C continuous oil temperature — important in UK summer operating conditions where hydraulic systems can run warm.

Typical Application Scenarios

This steering cylinder is suited to a wide range of aerial work platforms deployed across the United Kingdom, including 12m–26m articulating boom lifts used in bridge inspection and façade maintenance, rough-terrain scissor lifts on construction sites in the North West and Midlands, and compact self-propelled MEWPs used in warehouse and events environments. Fleet hire operators maintaining mixed-brand MEWP fleets value it as a reliable cross-compatible replacement unit. Utilities firms working on power line and telecoms infrastructure rely on its steering precision when positioning platforms on embankments and cambers.

21 MPa continuous and 32 MPa burst tolerance provide a robust safety margin well above the operating pressures of most MEWP steering circuits, reducing the risk of seal extrusion or rod buckling during shock loads.

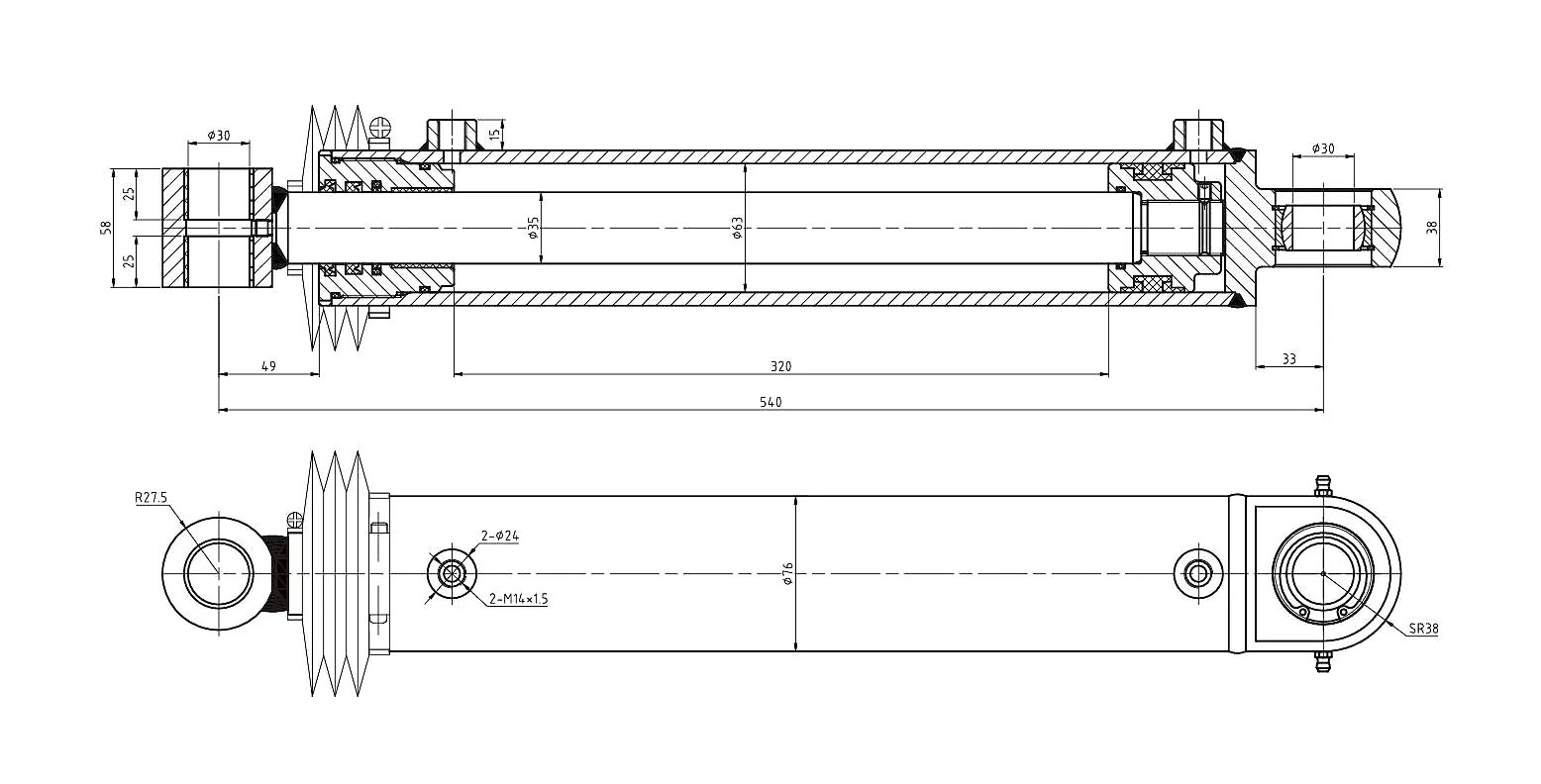

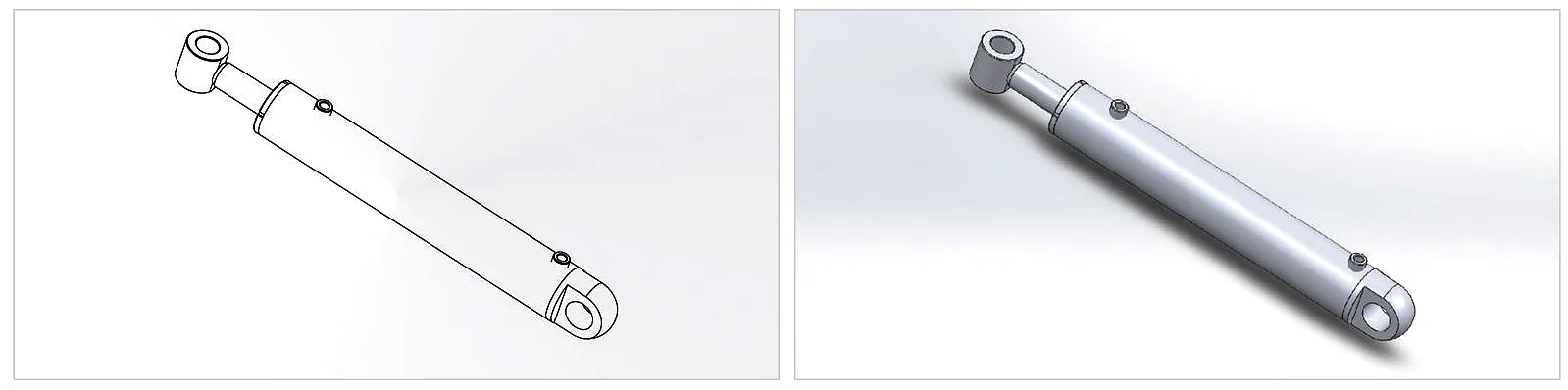

At only 13 kg and a 540mm centre-to-centre installation length, the HCYY11112012 does not compromise the platform’s overall machine weight or turning radius — a significant advantage for 3.5-tonne capacity boom lifts needing to meet UK road transport limits.

Hard chrome rod plating combined with polyurethane wiper seals keeps contamination out of the seal stack even when operating in wet, muddy, or dusty site conditions common across UK outdoor worksites — dramatically extending intervals between reseals.

The honed bore and composite piston seal geometry minimise stick-slip at low flow rates, giving operators a smooth, predictable steering feel at low travel speeds — essential for precise platform positioning near façades, overhead obstacles, and excavation edges.

Port thread standards (BSP, ORFS, SAE), clevis dimensions, and surface treatment can all be modified to match specific platform OEM drawings. Our engineering team can supply a revised dimensional drawing within 48 hours of receiving your specification sheet.

The cylinder’s pressure rating and sealing arrangement are designed in line with EN ISO 3320 / BS EN 10305 tube standards, supporting CE machinery directive compliance — a practical necessity for any MEWP operating legally on UK worksites regulated under PUWER and LOLER.

“We had four platforms on a time-sensitive road bridge inspection contract. The HCYY11112012 was the only steering cylinder we could get in under two weeks that matched our bore and stroke requirements. Fitted perfectly, no issues eight months in.”

“Price point is very competitive against the OEM option, and the cylinder quality honestly exceeded our expectations. Chrome rod finish, seal quality, the port threads — all exactly as specified. Will be our first call next time.”

“Our maintenance team stripped the cylinder on arrival for a pre-fit inspection — everything was clean, properly honed, and the seals showed no signs of shelf deterioration. That attention to packaging and preservation tells you a lot about a supplier.”
