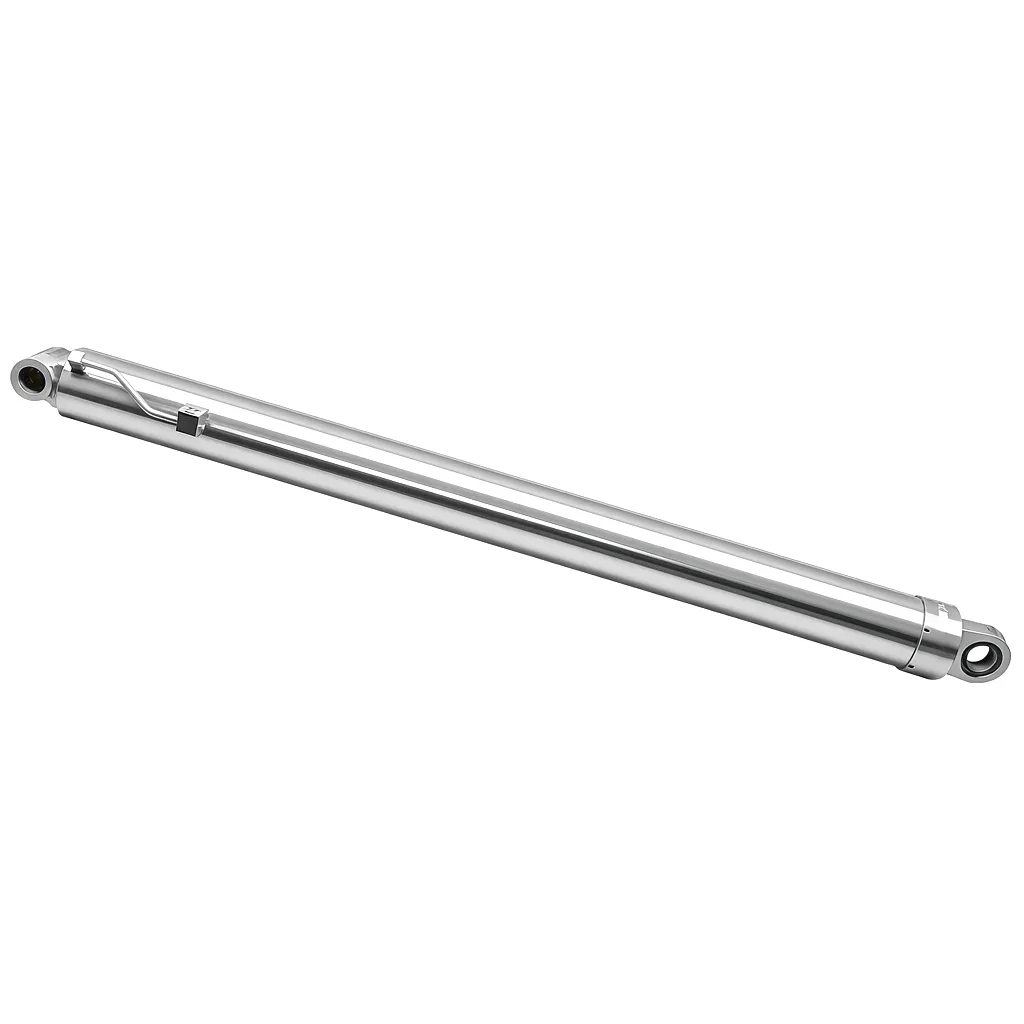

Main Boom Angle Cylinder

Operating Principle

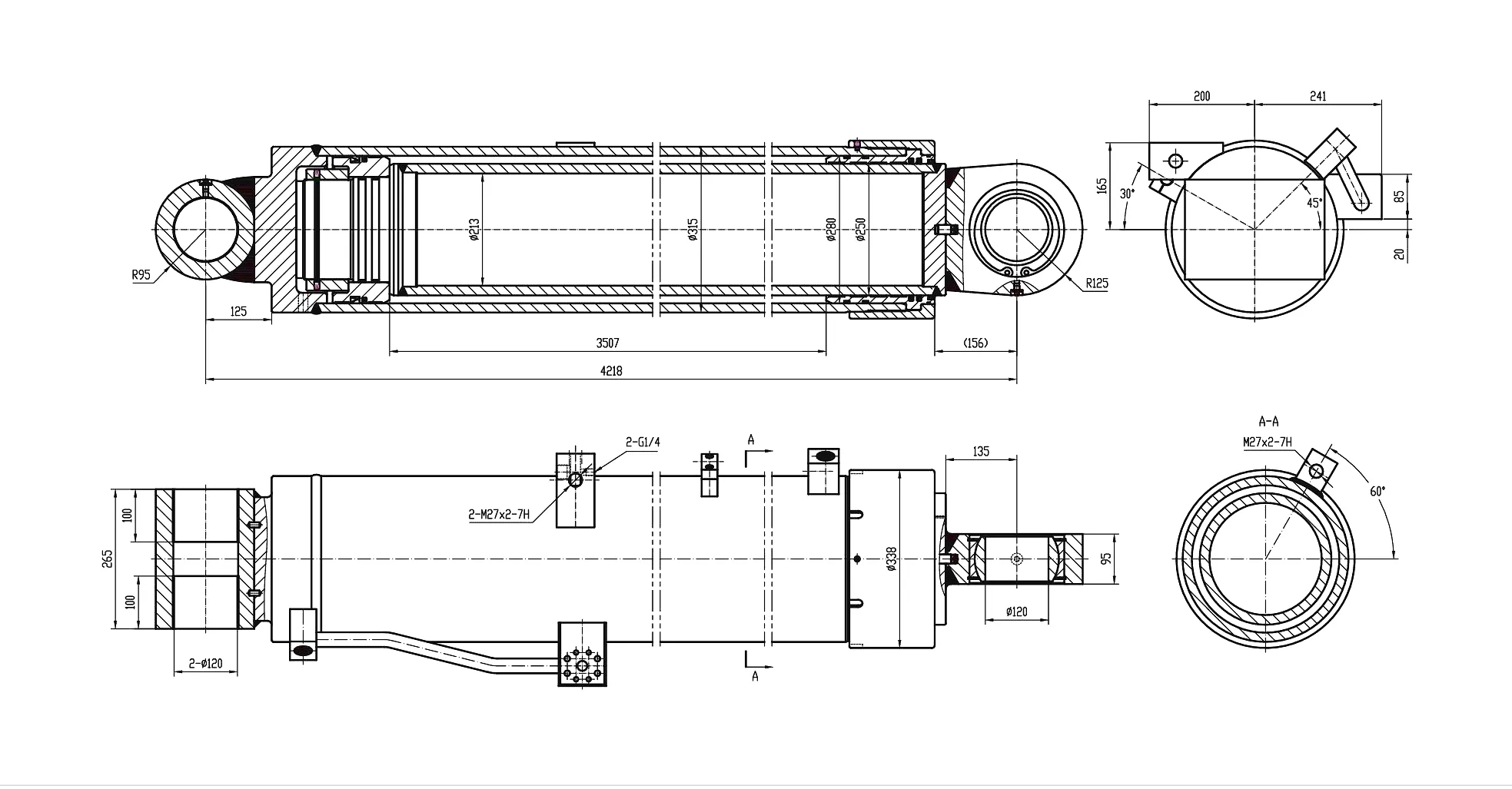

The main boom angle cylinder operates as a double-acting hydraulic actuator. Pressurised fluid enters the cap-end chamber to extend the rod, raising the boom; fluid directed into the rod-end chamber retracts the rod and lowers the luffing angle. The 280 mm bore diameter generates the substantial force required to support a loaded main jib while the 250 mm rod diameter resists buckling across the 3,507 mm stroke. An integrated cushioning sleeve at the end positions absorbs kinetic energy at stroke limits, protecting the crane’s structural connections from shock loading during fast slew cycles.

Materials & Construction

The barrel is formed from seamless cold-drawn steel tube with a minimum tensile strength of 560 N/mm², honed internally to Ra 0.4 µm for optimal seal performance. The rod is manufactured from 45# chrome-plated steel with a chromium deposit of 25–30 µm, ground and polished to achieve surface hardness exceeding HRC 55. End caps and clevis fittings are machined from EN 1.0570 structural steel with fully machined pin bores. All sealing systems use Parker or equivalent-grade polyurethane lip seals and PTFE back-up rings, rated to the full 39 MPa withstand specification. External surfaces receive epoxy primer plus polyurethane topcoat, suitable for maritime and wet-weather operating environments common across Scotland, Wales, and coastal England.

Typical Application Scenarios

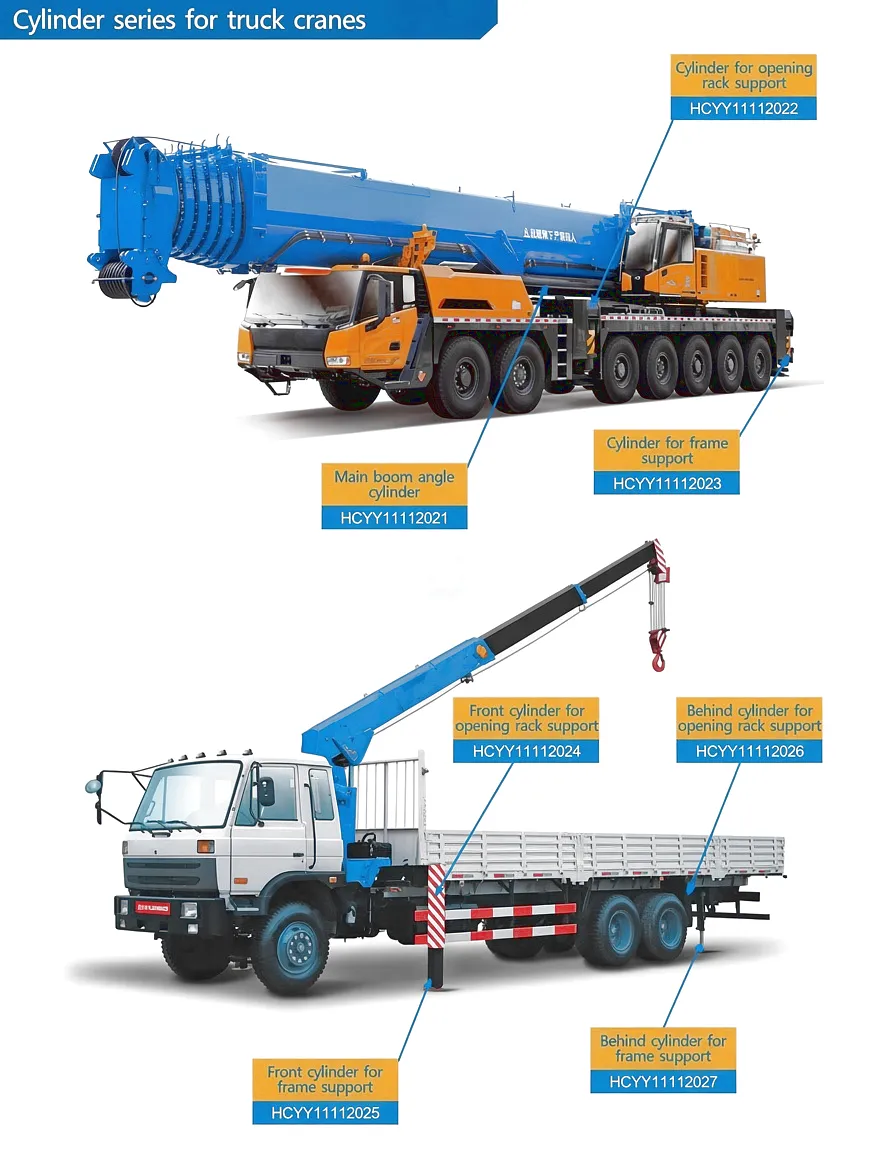

This main boom angle cylinder is specified for truck-mounted telescopic boom cranes in the 40–160 tonne capacity range. Typical deployment environments in the UK include port and dockside lifting operations at Tilbury, Grimsby, and Aberdeen; steel construction projects in London, Birmingham, and Manchester; offshore platform maintenance access via jack-up vessels; bridge deck installation on motorway schemes; and infrastructure contracts for wind turbine nacelle lifts across the Scottish Highlands. The cylinder’s 4,218 mm installation distance allows fitment to both short-wheelbase urban cranes and heavy-duty long-boom variants without modification to existing mounting geometry.

High Bore-to-Rod Ratio

The Φ280 / Φ250 configuration minimises annular area differential, delivering near-equal extension and retraction forces — critical for precise luffing control under load.

39 MPa Withstand Rating

Tested to 24% above working pressure, providing structural reserve against pressure spikes during dynamic braking and emergency load release events.

Long Stroke Capability

3,507 mm of working stroke accommodates the wide luffing arcs of modern long-reach truck cranes, eliminating the need for mechanical linkage compensators.

Premium Seal Package

Polyurethane lip seals with PTFE back-up rings deliver leak-free performance in the temperature range -20 °C to +80 °C — essential for UK winter site conditions.

Chrome Rod Durability

25–30 µm hard chrome deposit on the rod surface resists scoring from airborne particulate on construction sites, extending service intervals and lowering total cost of ownership.

Drop-in Fitment Geometry

4,218 mm installation distance and standard clevis dimensions ensure compatibility with a wide range of OEM mounting points without site modification or adaptor fabrication.

“We were genuinely surprised by the quality — this is not a budget substitute. The bore finish and seal specification are to the same standard as the OEM cylinder. After six months on our 50-tonne crane at the Birmingham New Street development, there has been zero leakage and no complaints from the operators.”

“Lead time was the deciding factor for us. We had a 100-tonne crane offline during a critical phase of a wind turbine installation contract in Aberdeenshire. UK Ever-power quoted, confirmed, and delivered a tested HCYY11112021 in nine days. That kind of response saves projects and protects relationships with clients.”

“Our procurement team evaluated three suppliers on price, documentation, and delivery for a batch of four boom angle cylinders. UK Ever-power came in competitive on price, but more importantly, they provided full material certificates, hydrostatic test reports, and installation dimension drawings without us having to chase. That paperwork matters enormously when you are working under LOLER and PSSR requirements on UK construction sites.”

🛠 Custom Bore & Rod Dimensions

Non-standard bore diameters from 80 mm to 500 mm and rod diameters matched to your specific application loading are available with a standard 6–8 week engineering lead time. All drawings are reviewed by our hydraulic engineers before production commencement.

📑 Full Documentation Pack

Every cylinder ships with material traceability certificates, hydrostatic test records, dimensional inspection reports, and installation drawings. Documentation packages meet LOLER and PSSR requirements as commonly required by UK lifting contractors and insurance assessors.

🌟 OEM Brand Customisation

We manufacture under customer brand labelling for OEMs and distributors who require white-label supply. Minimum order quantities for branded batches start from as few as 5 units, making us accessible to UK crane dealers and specialist lifting equipment distributors of all sizes.

🕒 UK Stock & Fast Despatch

Selected high-demand cylinder models are held in UK stockholding at our Bury St Edmunds facility. In-stock items can be despatched same day for overnight delivery to most UK mainland addresses, dramatically reducing crane downtime costs compared to overseas-only suppliers.
