Heavy-Duty Hydraulic Cylinders — UK Industrial Supply
Front Cylinder for Frame Support
Engineering-grade hydraulic support cylinders designed for truck-mounted cranes, aerial work platforms, and heavy lifting equipment operating across UK construction, utilities, and logistics sectors.
What Is a Front Frame Support Cylinder?
The front frame support cylinder is a purpose-built hydraulic actuator mounted at the forward structural frame of a crane or heavy machinery chassis. Its primary job is to transfer vertical and lateral load forces from the boom assembly down through the vehicle frame and into stabilised ground contact — effectively turning an inherently dynamic load into a controlled, static footprint. Without a correctly rated front support cylinder, even minor load imbalances can shift the vehicle’s centre of gravity dangerously forward, putting both operator and equipment at risk.
The HCYY11112025 model offered here is engineered for truck crane applications where structural integrity cannot be compromised. With a bore diameter of 80 mm, a rod diameter of 60 mm, and a full stroke of 790 mm, this cylinder delivers consistent, repeatable support throughout the working cycle. It operates under a rated working pressure of 18 MPa and can withstand peak bursts up to 27 MPa — performance figures that sit comfortably above the demands of typical UK site operations without over-engineering the unit’s weight budget.
Request a Quote for HCYY11112025
Response within 1 business day · UK orders welcome · Custom specifications available

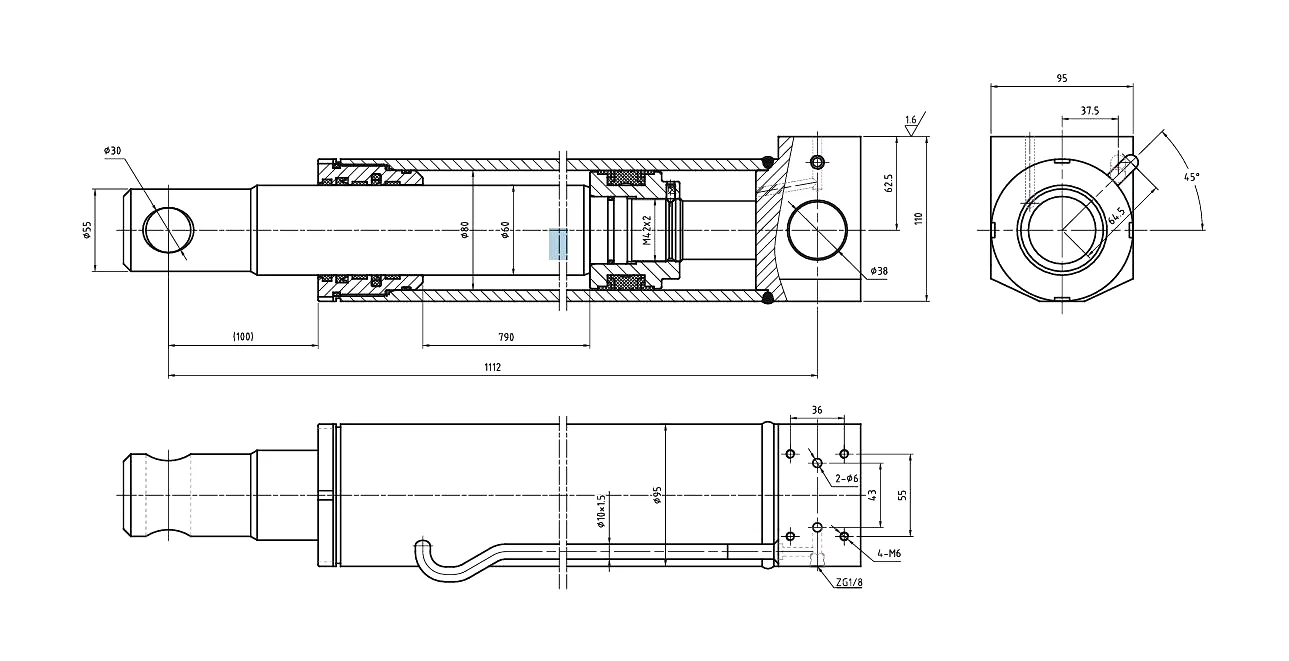

Technical Specifications
The specification table below reflects the factory-confirmed data from the original product catalogue. Every figure is derived from production testing at our ISO-certified manufacturing facility. UK buyers should note that all pressure ratings exceed the minimum thresholds defined under PSSR 2000 (Pressure Systems Safety Regulations) for industrial hydraulic equipment, making integration with compliant UK crane systems straightforward.
| Front Cylinder for Frame Support | ||||||
|---|---|---|---|---|---|---|
| Cylinder Model | Specifications | Working Pressure | Maximum Withstand Pressure | Trip | Installation Distance | Weight |
| HCYY11112025 | Φ80 x Φ60 x 790 | 18 MPa | 27 MPa | 790 | 1112 | 45 kg |
Units: Pressure in MPa · Dimensions in mm · Weight in kg · Trip = stroke length
Why Choose This Front Frame Support Cylinder
⚙
Dual-Seal Sealing System
A compound seal design combining a PTFE guide ring with a nitrile lip seal eliminates bypass leakage even under prolonged static loading. This matters greatly on UK construction sites where cranes may hold a load stationary for extended periods during structural placement.
🔌
High-Strength Alloy Steel Construction
The cylinder barrel is fabricated from cold-drawn seamless steel tube with an inner surface honed to Ra 0.4 µm. The piston rod uses 45# steel with hard-chrome plating to a minimum of 20 µm depth, providing corrosion resistance that stands up to outdoor UK working environments.
📈
Overload Safety Margin
A rated working pressure of 18 MPa with a burst tolerance of 27 MPa — a safety factor of 1.5 — means the unit will not catastrophically fail during sudden pressure spikes from crane boom swing or load dynamic changes, protecting both personnel and the host machine.
🔧
OEM-Ready Mounting Interface
With a confirmed installation distance of 1112 mm and a mass of 45 kg, this cylinder slots directly into OEM mounting brackets on standard 8-tonne to 20-tonne truck crane chassis, eliminating costly frame modifications and reducing installation labour on your UK depot floor.
How It Works, What It’s Made Of, and Where It’s Used
Operating Principle
Pressurised hydraulic fluid is directed into the cap end of the cylinder by the crane’s main control valve block. As pressure builds, the piston and rod extend, pushing the front outrigger pad or frame bracket firmly against the ground or support structure. The static pressure lock valve — fitted to most crane installations — then holds the rod position without continuous pump demand, reducing hydraulic heat generation during long-duration lifts. Retraction is achieved by porting fluid to the rod end while the cap end drains to tank.
Material Composition
The barrel is cold-drawn seamless precision steel tube (ST52 equivalent), bored and honed for exact roundness. The end caps are machined from forged mild steel and welded with full-penetration seam welds, then pressure-tested before dispatch. The piston rod is 45# medium-carbon steel — heat-treated for a surface hardness of HRC 58–62 — then hard-chrome plated and precision-ground. Dynamic seals are Parker-compatible polyurethane with anti-extrusion rings. External painted surfaces use two-part epoxy primer plus polyurethane topcoat, providing excellent resistance to the damp, salt-laden air common across UK coastal and industrial zones.
Application Scenarios
The HCYY11112025 is developed specifically for the stabiliser and frame support circuits of truck-mounted cranes, including those operated by UK infrastructure contractors, utilities maintenance fleets, and construction plant hire companies. It also sees service in:
- Bridge inspection vehicles — holding the main boom at full extension during deck surveys
- Heavy recovery trucks — front frame bracing during vehicle recovery operations on motorways
- Rail-mounted cranes servicing UK Network Rail depots
- Offshore supply vessel deck cranes — where salt-air corrosion resistance is critical
Related Boom Cylinder Products
If your project involves aerial work platforms or folding boom configurations, the following products from our truck crane cylinder series may complement or replace the front frame support cylinder in your hydraulic circuit design. Both models are available with the same quality assurance standards and can be ordered alongside the HCYY11112025 to simplify your procurement process.
Aerial Platform Main Boom Angle Cylinder
Stroke: 555 mm · Model: HCYY11112010
Controls the primary angle of the main boom on aerial work platforms, providing smooth, leak-free actuation across the full angular range. A direct complement to the front support cylinder in aerial boom systems.
Folding Boom Angle Cylinder for Aerial Work Vehicle
Stroke: 1458 mm · Model: HCYY11112011
Engineered for the fold-joint articulation on knuckle boom and articulating aerial platforms, this long-stroke cylinder manages the entire second-section travel range with exceptional pressure consistency and minimal drift under load.
Customer Success: Yorkshire Plant Hire Fleet Upgrade
Case Study — UK Heavy Plant Hire, 2025
Fleet Reliability Overhaul for 12-Tonne Truck Crane Operations Across Northern England
A plant hire company based in West Yorkshire — operating a fleet of 14 truck-mounted cranes servicing civil engineering contractors across the North of England — had experienced recurring seal failures in their existing front frame support cylinders. The failures were concentrated in the cap-end gland area, causing hydraulic fluid seepage during prolonged static holds on uneven ground. The company estimated downtime costs at over £3,200 per incident once crane standdown, transport, and seal replacement labour were factored in. After approaching our UK distribution team for a quote, they trialled four HCYY11112025 units across two crane chassis over a six-month period covering winter site conditions from Teesside to Sheffield. At the six-month review, zero gland failures had occurred, and the maintenance interval was extended from 250 hours to 400 hours based on hydraulic fluid sampling results. The company subsequently ordered a full fleet replacement of 28 units and reported an estimated annual saving of £18,400 against their previous maintenance baseline.
— Procurement lead, West Yorkshire plant hire operator (details withheld per customer request)
“We’ve been sourcing replacement cylinders from various suppliers for years. The HCYY11112025 is the first unit that has matched our OEM installation distances exactly without any shimming work. Lead time was competitive and the after-sales support on technical queries was prompt.”
— Fleet Engineer, crane hire contractor, Manchester
“Operating in the offshore supply sector, we need cylinders that resist salt exposure without constant re-greasing. The chrome rod finish on these units has held up through 14 months on North Sea vessel deck cranes — no pitting, no seal swelling. We’ll be ordering the next batch through the same channel.”
— Procurement Manager, Aberdeen-based marine services company
“We requested a custom bore-size variant for a non-standard recovery vehicle we were rebuilding. The factory responded with a drawing approval within three working days and shipped the finished cylinders in four weeks. That kind of flexibility is rare at this price point. Highly recommended for UK buyers needing bespoke hydraulic support solutions.”
— Workshop Director, Midlands-based HGV recovery company
Manufacturing Capability and Custom Orders
Our hydraulic cylinder manufacturing facility operates under ISO 9001:2015 quality management and is equipped with CNC honing lines, robotic welding cells, and a full in-house pressure test bay capable of validating cylinders up to 40 MPa. Standard production lead time for the HCYY11112025 is 15–20 working days from order confirmation, with express processing available for urgent UK plant breakdowns.
Custom specifications are a standard part of our service — not an exception. UK buyers regularly request: non-standard bore or rod diameters, alternative port thread standards (BSP in addition to metric), powder-coat colour matching to OEM crane liveries, modified installation distances to accommodate chassis frame variants, and high-cycle sealing packages for rental fleet applications. Our engineering team reviews custom drawings within 2 business days and can provide a DXF or PDF confirmation drawing for client approval before production begins. Minimum order quantities for custom runs start at a single piece for most configurations.
Serving the UK Crane and Lifting Industry
The United Kingdom’s construction, utilities, and infrastructure sectors rely on truck-mounted cranes daily — from fibre broadband rollout work in rural Scotland to high-rise steel erection in London and off-shore wind turbine base installations along the East Anglian coast. In every one of these environments, the hydraulic stability of the crane’s support circuit is foundational to safe operation. LOLER (Lifting Operations and Lifting Equipment Regulations 1998) and PUWER (Provision and Use of Work Equipment Regulations 1998) both place legal obligations on UK operators to ensure lifting equipment — including its hydraulic components — is maintained in sound condition and fit for purpose.
Sourcing a correctly rated replacement front frame support cylinder from a traceable, documented supplier — rather than an unverified aftermarket source — allows UK crane operators and plant hire companies to demonstrate due diligence in their statutory inspection records. We are able to supply material certification (EN 10204 3.1 mill certificate), dimensional inspection reports, and pressure test certificates for all HCYY11112025 units on request, supporting your LOLER documentation file at no additional charge.
Frequently Asked Questions
Ready to order or need a technical consultation before committing? Our hydraulic engineers are available to review your application and confirm the right cylinder specification for your crane or support structure.
Contact Sales: [email protected]
