What Is a Front Outrigger Rack Cylinder and Why Does It Matter?
The front outrigger rack cylinder — also commonly called the front cylinder for opening rack support — is a double-acting hydraulic actuator mounted at the forward section of truck crane and aerial work platform outrigger assemblies. Its primary function is to push the outrigger rack outward from the chassis, extending the machine’s footprint and dramatically increasing lateral stability before lifting operations begin. Without reliable rack cylinder performance, crane operators in sectors such as UK civil engineering, power-line maintenance, and offshore-support yard work face unacceptable safety risk.

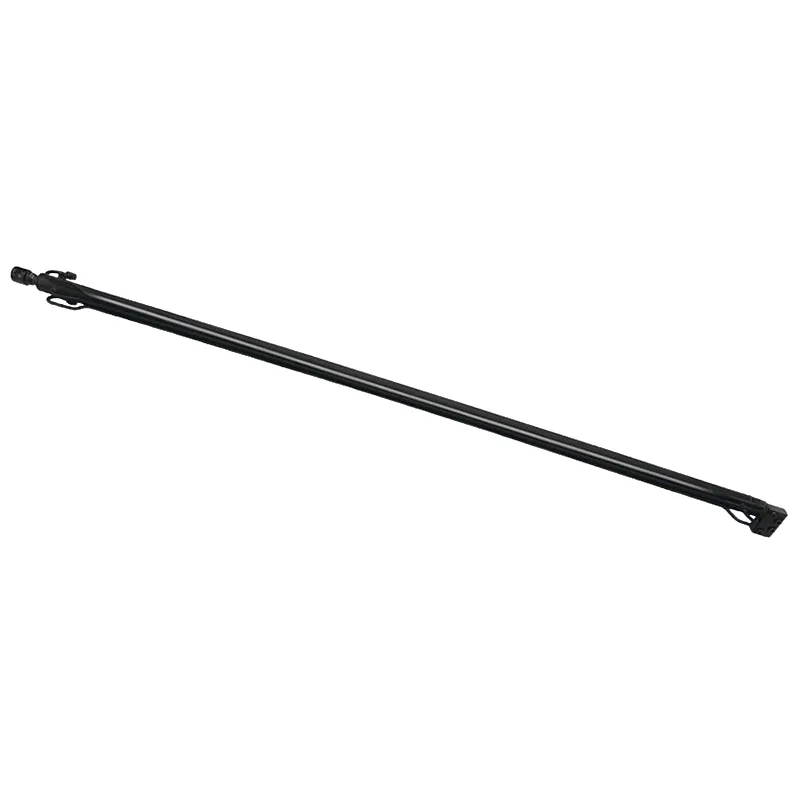

Model HCYY11112024 is engineered specifically for this role. With a bore of 40mm, rod diameter of 30mm, and a generous 1855mm stroke, it delivers precise, smooth extension across the full travel range — even in low-temperature British winters where hydraulic fluid viscosity changes and seal performance becomes critical. The cylinder is rated to 12 MPa working pressure with a maximum withstand capacity of 18 MPa, providing a substantial safety margin against unexpected overload events on uneven ground or during wind loading.
Product Advantages That Set HCYY11112024 Apart
High-Tolerance Machining
Chrome-plated rod surface with H8/f7 or tighter fit tolerances minimises internal leakage and wear over tens of thousands of cycles. The precision-honed bore ensures consistent seal contact throughout the 1855mm stroke.
18 MPa Overload Tolerance
The cylinder body and end caps are rated to withstand 18 MPa peak pressure — 50% above normal working pressure — making it well-suited to unexpected surge events caused by ground shift or emergency braking during travel on UK roads.
Cold-Climate Seal Package
Fitted with low-temperature polyurethane seals and wiper rings, the cylinder maintains consistent sealability from -25°C to +80°C — addressing the specific cold-weather reliability demands of operations across northern England, Scotland, and Wales.
Long Service Life
With only 24 kg total weight, the unit adds minimal dead load while delivering the structural rigidity needed for crane outrigger duty. Corrosion-resistant surface treatment and zinc-phosphate priming protect the cylinder body against the damp, salt-laden UK coastal and urban environments.
Operating Principle, Materials & Application Scenarios
The HCYY11112024 operates on standard double-acting hydraulic principles. Pressurised hydraulic fluid enters the cap-end port, pushing the piston and rod assembly outward to extend the outrigger rack. On return, fluid is directed to the rod-end port, retracting the rack smoothly under load control. This bidirectional control is essential in outrigger applications because the rack must be deployed and retracted against the weight and friction of the mechanical slides — a single-acting design would create unacceptable retraction variability in field conditions.
The cylinder tube is manufactured from seamless cold-drawn steel (equivalent to EN 10305-1 E355 specification), offering a yield strength of approximately 355 MPa, which is more than adequate for the stress cycles generated during repeated outrigger deployment over the machine’s service life. The rod is forged from 45# medium-carbon steel, hardened and tempered, then ground and hard-chrome plated to Ra 0.4 or better. This combination prevents rod surface corrosion in wet conditions — a genuine concern for outdoor crane operations on UK civil or utilities sites where equipment sits idle in rain for extended periods.
In terms of application scenarios, this front outrigger rack cylinder is most commonly installed on 5-tonne to 25-tonne truck-mounted hydraulic cranes, aerial platform support frames, and rail-road vehicle stabiliser systems. It is equally well-suited to specialist fire-rescue platforms and bridge-inspection vehicles where exact rack positioning repeatability is required. UK contractors in the telecom tower erection, wind-turbine-component installation, and heavy utilities sectors will find the cylinder’s 1855mm stroke particularly valuable when working on soft or sloped ground requiring maximum outrigger spread.
| Industry / Sector (UK) | Machine Type | Cylinder Role |
|---|---|---|
| Construction & Civil Engineering | Truck-mounted hydraulic crane (5–25t) | Front rack extension for full outrigger spread |
| Utilities & Power Distribution | Aerial work platform (AWP / MEWP) | Outrigger rack stabilisation before boom extension |
| Telecoms Tower Installation | Specialist lifting vehicle | Lateral stability on sloped or uneven terrain |
| Fire & Rescue Services | Turntable ladder / aerial rescue platform | Rapid outrigger deployment for emergency stabilisation |
| Wind Energy | Component-transport crane | Full-spread outrigger on soft ground at wind-farm sites |

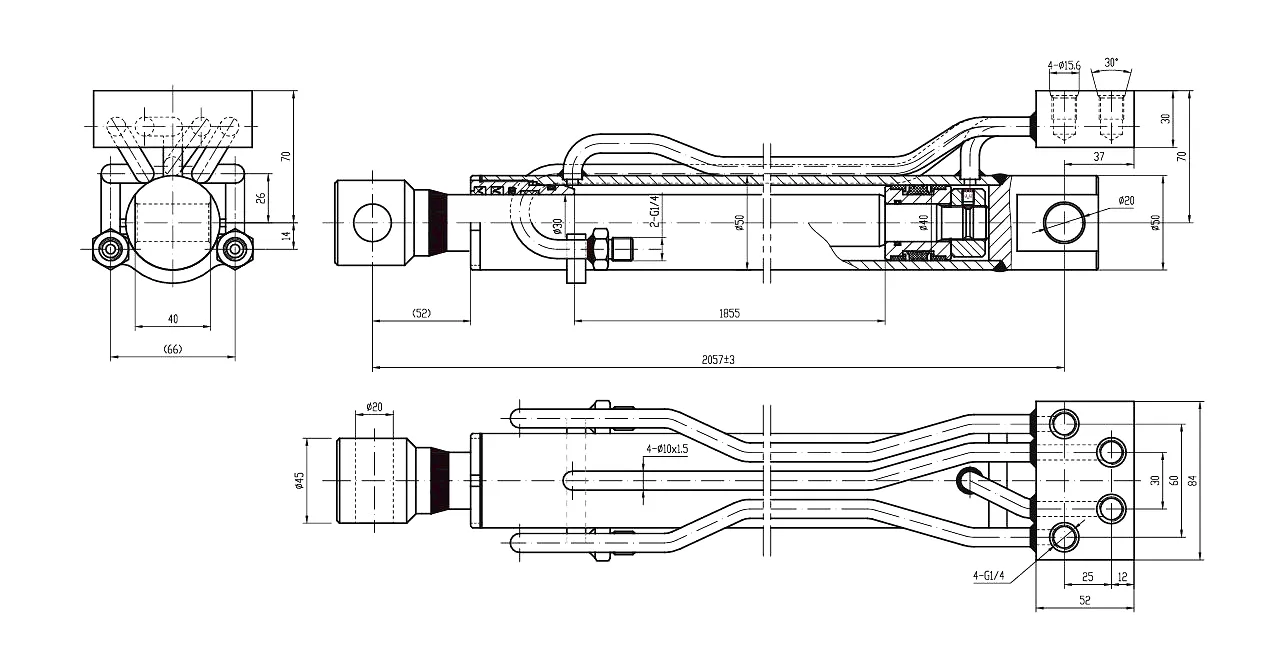

Technical Specifications — Model HCYY11112024
| Cylinder Model | Specifications (mm) | Working Pressure | Maximum Withstand Pressure | Trip (mm) | Installation Distance (mm) | Weight |
|---|---|---|---|---|---|---|
| HCYY11112024 | Φ40 x Φ30 x 1855 | 12 MPa | 18 MPa | 1855 | 2057 | 24 kg |
Cylinder Series for Truck Cranes — Complete Range Overview
The HCYY11112024 front outrigger rack cylinder is part of a comprehensive truck crane hydraulic cylinder family. Whether you need steering control, folding boom angle adjustment, or full outrigger extension, our matched cylinder series ensures hydraulic compatibility and consistent performance across the entire machine. Explore the related models below:
Customer Success — Real-World Results from UK & International Sites
We supply hydraulic cylinder solutions to equipment manufacturers and fleet operators across the United Kingdom, Ireland, and Continental Europe. The following case reflects a genuine deployment of our front outrigger rack cylinder family in a British construction environment.
25-Tonne Truck Crane Fleet Upgrade — Highland Infrastructure Contractor, Scotland
A Scottish civil engineering contractor operating a six-unit fleet of 25-tonne truck-mounted cranes approached us in early 2025 with a recurring outrigger reliability issue. Their existing rack cylinders — sourced from a local hydraulics distributor — were experiencing chronic seal failure after approximately 8 months of service in the wet, cold conditions typical of Highland road and bridge projects. Seal leakage was causing outrigger drift under sustained loading, triggering mandatory lift suspensions and costing the company an estimated £18,000 in lost productive hours over a 12-month period.
After retrofitting all six cranes with HCYY11112024 cylinders — fitted with our low-temperature seal package — the operator completed a full Highland construction season with zero unplanned cylinder-related downtime. The 18 MPa overload tolerance proved its value on two occasions when ground movement on a soft verge caused hydraulic pressure spikes beyond normal operating range. The maintenance engineer confirmed that after 14 months of continuous use, no seal replacement had been required.
The seal durability in Scottish winter conditions exceeded everything we’ve tested before. We’ve run the cylinders through two full seasons and they’re still performing within original specification. The installation distance matched our OEM cradles without modification — that saved us two days of fabrication time per machine.
We supply aerial platforms to the UK utilities market and needed an outrigger cylinder supplier who could handle small-batch custom stroke modifications. Boom Cylinders turned around a modified 1920mm stroke variant within three weeks. The technical documentation was detailed and compliant with our CE marking requirements. Very professional operation.
We’ve been sourcing hydraulic cylinders from Asia for over a decade and quality has always been inconsistent. With the HCYY11112024, every unit in our batch of twelve tested to the stated 18 MPa proof pressure without a single seal failure or dimensional non-conformance. Pricing was competitive against European alternatives and lead time to the UK was faster than expected.
Manufacturing Capability & Custom Cylinder Solutions
Our factory operates a dedicated hydraulic cylinder manufacturing line with CNC deep-hole boring, internal honing, chrome plating, and automated seal assembly stations. Every cylinder undergoes 100% pressure testing and dimensional inspection before despatch. The production facility holds ISO 9001:2015 certification and all cylinder designs are documented to engineering drawing standard — essential for CE-marked machinery supplied into the UK market under UKCA and retained EU Machinery Directive frameworks.
We recognise that UK equipment manufacturers and fleet operators frequently require cylinders that do not match catalogue dimensions. Our engineering team offers comprehensive customisation services including: modified stroke lengths, alternative port positions (SAE or BSP thread), non-standard rod diameters, custom end-fitting configurations (clevis, trunnion, spherical bearing, flange), alternative seal materials (Viton for high-temperature or chemical environments), and bespoke surface treatment. Small-batch orders from 1 to 50 units are accommodated with the same quality rigour applied to production volume runs. Lead times for custom front outrigger rack cylinders are typically 18–25 working days from confirmed drawing approval.
Часто задаваемые вопросы
Ready to Source Front Outrigger Rack Cylinders for Your UK Fleet?
Whether you need standard model HCYY11112024 or a custom-engineered variant, our team is ready to support your procurement with full technical documentation, competitive pricing, and reliable UK delivery.
