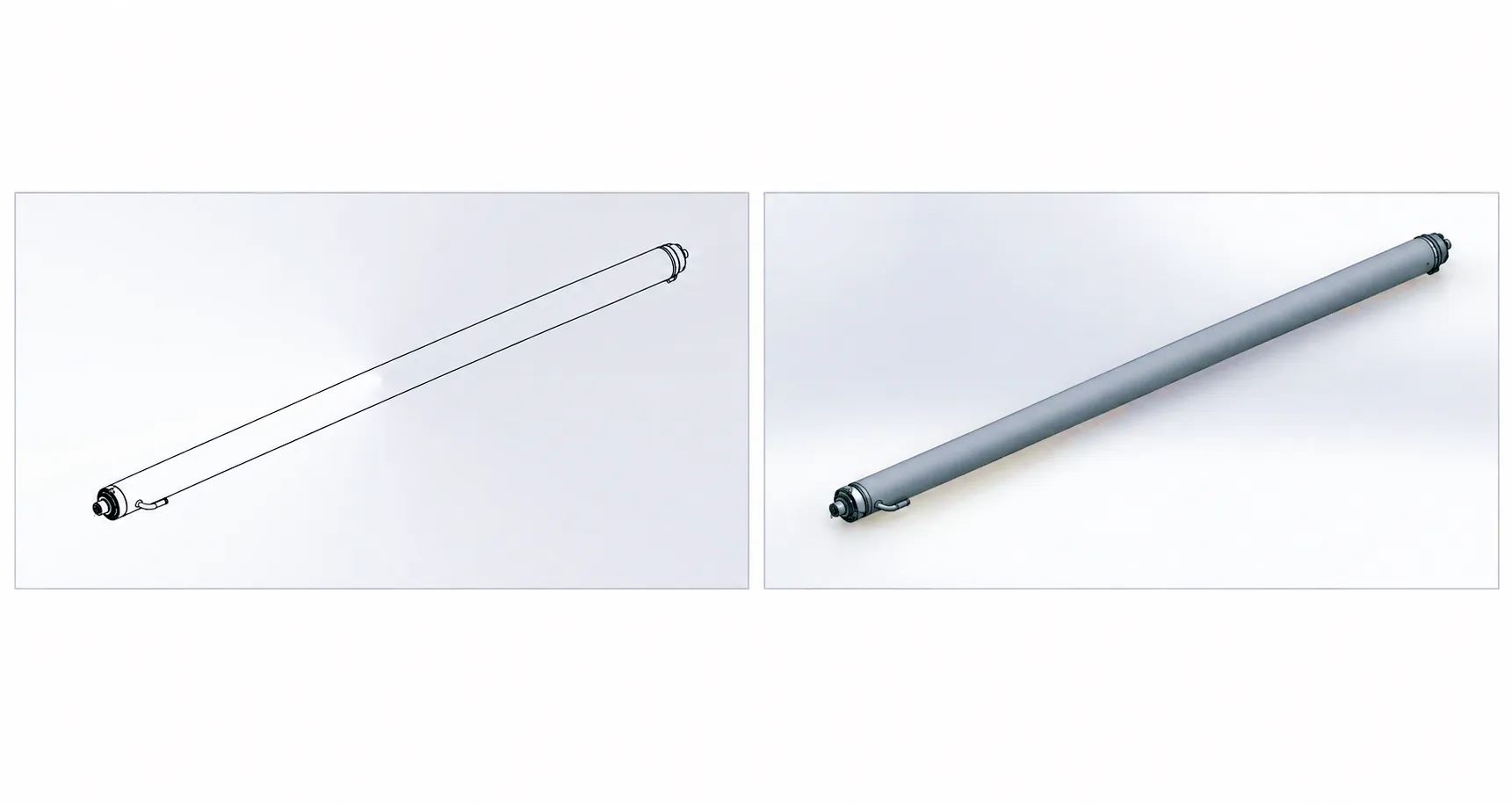

Single-Acting Forklift Lifting Cylinder

Operating Principle

Hydraulic oil enters the cap-end port under pump pressure, pushing the piston and rod assembly upward. This linear extension lifts the mast carriage and load. When the directional control valve is returned to neutral, oil drains back to the reservoir via gravity-assisted retraction, aided by the weight of the carriage. The simplicity of this single-flow circuit is what gives the design its long service record in repetitive forklift duty cycles — some installations in UK distribution centres have exceeded one million lift cycles without rod replacement.

Materials & Construction

The cylinder barrel is manufactured from seamless cold-drawn steel tube (ST52 equivalent), precision-honed internally to achieve a bore roughness of Ra 0.4 µm. The piston rod is 45Cr steel, induction-hardened to HRC 55–60, then hard-chrome plated to a minimum 25 µm thickness for corrosion resistance. Sealing is achieved with imported polyurethane (PU) wiper seals and NBR O-rings, rated for mineral hydraulic oil up to 100°C continuous operating temperature — suitable for both ambient UK warehouse environments and heated paint-shop or foundry settings.

Typical Operating Scenarios

This forklift lifting cylinder is deployed across a range of heavy-duty UK operations: bonded warehouse racking retrieval in Midlands logistics parks, automotive parts handling in West Midlands Tier 1 supplier plants, cold-chain pallet movement in Yorkshire food-distribution facilities, and paper-roll handling in Scottish printing operations. Any environment where a 1,500 mm stroke at up to 18.1 MPa working pressure is required — and where daily lift counts exceed 400 cycles — represents the core application territory for this cylinder model.

High Burst-Pressure Margin

Working at 18.1 MPa with a tested burst threshold of 27.15 MPa delivers a safety factor of 1.5× — exceeding the EN ISO 4413 standard for hydraulic component safety used across UK industry.

Zero-Leak Sealing System

Imported PU wiper seals and dual-lip rod seals prevent external oil leakage to floors — important for UK food-grade and cleanroom forklift applications where oil contamination results in costly audits.

Drop-In Compatibility

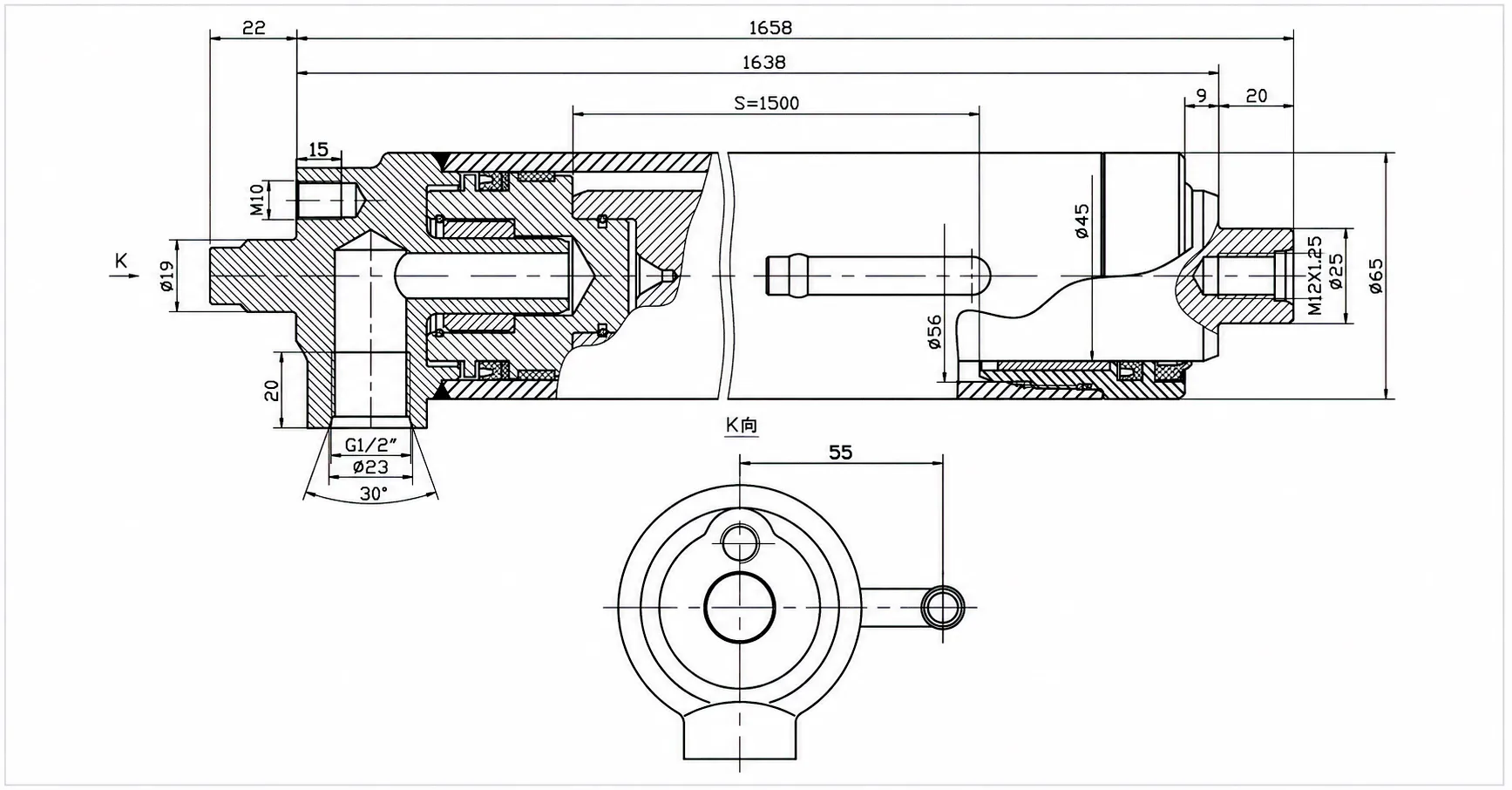

With an installation distance of 1,658 mm and standard port sizing, the HCYY11112000 integrates directly into most counterbalanced forklift mast assemblies without machining, cutting replacement downtime to under two hours.

Extended Service Intervals

Hard-chrome plated rod and precision-honed bore minimise internal friction and wear, extending the seal replacement interval by 30–40% compared to standard cylinders — reducing planned maintenance shutdowns in high-throughput UK facilities.

❝

“We trialled three cylinders on our busiest reach trucks in our Northampton depot. After 14 months and over 600,000 lift cycles across the trial units, not one had leaked. We’ve since replaced every cylinder in the building.”

— Thomas B., Engineering Manager

UK Food Retail Distribution, Northamptonshire

❝

“The lead time was seven working days from order confirmation to delivery at our Birmingham site. The cylinders bolted straight in — no modifications needed. We got the forklift back in service the same afternoon.”

— Sarah O., Procurement Lead

Automotive Parts Manufacturer, West Midlands

❝

“We operate in a cold-store at minus 18°C. Most cylinders show micro-cracking on the chrome after two winters. These have been flawless for 26 months. The price per unit was also 18% lower than our previous supplier on a like-for-like spec basis.”

— David M., Warehouse Operations Director

Cold Chain Logistics Provider, Yorkshire

What is the price or cost of a single-acting forklift lifting cylinder for a UK warehouse operation?

Pricing depends on order quantity, bore size, and any custom specifications required. UK buyers typically receive a firm quote within 24 hours by submitting an enquiry to [email protected]. Volume discounts apply for fleet replacement programmes involving five units or more, making total-cost-of-ownership significantly lower than OEM list pricing for large logistics operators.

How do I find a reliable hydraulic cylinder supplier in the UK that offers forklift lifting cylinders with fast delivery?

Boom Cylinders despatches to all UK mainland addresses within 7–12 working days from order confirmation. The HCYY11112000 standard model is held in stock and ships with full pressure-test certification and dimensional inspection records. This predictable lead time makes it practical for maintenance planners to hold a small buffer stock without tying up significant capital.

Can I get a custom bore or stroke length on a single-acting forklift lifting cylinder for a non-standard mast configuration?

Absolutely. Custom bore diameters, extended stroke lengths, alternative port configurations (BSP or DIN metric), custom mounting flanges, and non-standard rod-end fittings are all within scope. An engineering review and written quotation typically come back within 48 hours, and prototype samples are usually ready in approximately four weeks from drawing approval — fast enough to minimise disruption to planned maintenance schedules.

Which seal material is used in the forklift lifting cylinder and is it suitable for cold-store UK logistics applications below minus 18 degrees Celsius?

Standard seals are imported polyurethane (PU) wipers combined with NBR O-rings, rated for -20°C to +100°C continuous service. This range comfortably covers UK ambient warehouse and chilled distribution environments. For operations running at -18°C or colder — common in frozen food logistics — PTFE-based low-temperature seal kits are available as a factory-fitted option at the time of order.

Where can I get a competitive quote for replacing forklift lifting cylinders across a multi-site UK distribution fleet quickly?

Send your fleet size, cylinder model references, and site locations to [email protected]. Fleet enquiries are prioritised, and consolidated shipping to multiple UK depots can be arranged to reduce freight overhead. Multi-site procurement agreements with scheduled call-off orders are also available, giving your procurement team price certainty across the financial year.
