Wind Turbine Hydraulic Pitch Cylinder
Precision-engineered hydraulic pitch cylinders purpose-built for wind energy systems. Trusted by turbine OEMs and maintenance contractors across Great Britain for consistent blade angle control, high-pressure reliability, and extended service life in offshore and onshore applications.
What Is a Wind Turbine Hydraulic Pitch Cylinder?
A wind turbine hydraulic pitch cylinder is a double-acting hydraulic actuator that governs the angular position of each turbine blade relative to the incoming wind. By precisely extending or retracting under controlled hydraulic pressure, the cylinder allows the turbine controller to optimise aerodynamic efficiency during partial-load operation, and to feather blades safely during storm conditions or emergency shutdown sequences. Unlike electric pitch systems, hydraulic pitch cylinders deliver superior force output at compact size — a decisive advantage in nacelle-constrained hub designs common across the UK’s growing offshore wind sector.
Our HCYY11112028 wind power series cylinder is engineered to IEC 61400 turbine standards and validated against the wet, salt-laden operating environments typical of North Sea and Irish Sea installations. The cylinder body, piston rod, and pin interfaces are manufactured from alloy steels with surface treatments tailored for corrosion resistance, fatigue life, and the cyclic loading profiles inherent to blade pitch actuation — which can exceed one million full-stroke cycles across a 20-year asset life.

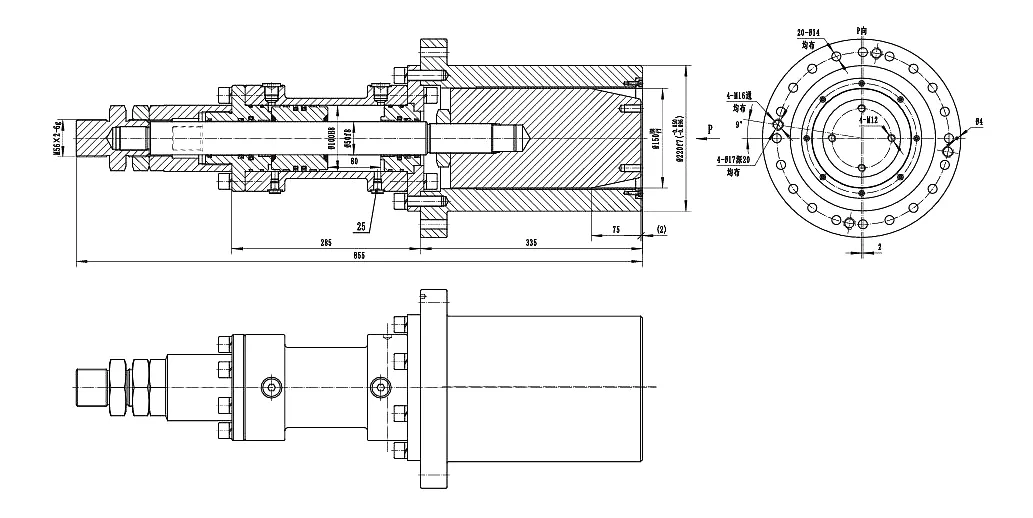

Technical Specification
How It Works — Principle, Materials & Application Scenarios
Operating Principle
Hydraulic oil is directed to either the cap-end or rod-end port of the cylinder by a servo-proportional valve under the command of the turbine’s pitch controller. The resulting differential pressure across the piston moves the rod to extend or retract, rotating the blade via its bearing ring through the defined 80 mm stroke. Closed-loop position feedback — typically via a linear transducer mounted alongside the cylinder — allows the controller to achieve angular resolution of less than 0.1 degrees, keeping rotor speed and power output precisely regulated across the full wind-speed envelope from cut-in to rated output.
Materials & Surface Treatment
The cylinder barrel is machined from seamless honed steel tube (ST52 / DIN 2391), providing a smooth internal bore finish to Ra 0.4 or better for minimal seal wear. The piston rod is manufactured from 45# alloy steel, hard chrome plated to a minimum depth of 25 microns, then precision ground and polished. This combination delivers a surface hardness exceeding 850 HV alongside outstanding corrosion resistance — essential for hub interiors exposed to salt mist in offshore wind environments across the UK coast. End caps and clevis mounts are forged steel, heat treated for impact toughness in the sub-zero temperatures common during winter operations in Scotland, northern England, and offshore fields in the North Sea.
Application Scenarios
Designed specifically for the blade pitch systems of multi-megawatt horizontal-axis wind turbines (HAWT), these cylinders are equally suited to onshore wind farms across Wales, Scotland, and Yorkshire, and to offshore structures in the North Sea and Celtic Sea. Beyond new-build projects, they are widely specified as replacement parts during major maintenance overhauls on Vestas, Siemens Gamesa, and GE turbine platforms, where original cylinder life has been exhausted and a certified drop-in replacement with equivalent geometric and performance parameters is required by the site operator.
Why Engineers Specify Our Pitch Cylinder
25 MPa
Safety Pressure Margin
Rated working pressure of 16 MPa with a tested burst margin of 25 MPa — a 56% safety factor that protects against hydraulic spikes during emergency feathering events.
Chrome-Plated Rod
Corrosion Resistance
Hard chrome plating to ISO 6158 on the 50 mm piston rod delivers proven performance in salt spray environments — validated to 480 hours neutral salt spray testing.
1M+ Cycles
Fatigue-Rated Design
Designed and validated for over one million full-stroke cycles without seal replacement — dramatically reducing turbine downtime and unscheduled maintenance costs across a 20-year asset life.
Drop-In Fit
OEM-Compatible Geometry
Overall cylinder length of 855 mm and 150 mm pin diameter match common pitch-bearing hub geometries, simplifying swap-out maintenance on established turbine platforms without hub re-engineering.
Related Hydraulic Cylinder Products
Our engineering team supplies a broad portfolio of hydraulic cylinders for lifting, support, and drive applications across the construction, energy, and agricultural sectors in the UK and internationally. Two products frequently specified alongside the wind pitch series include the Crawler Crane Lift Cylinder, designed for high-capacity crawler crane boom and jib actuation in heavy civil construction, and the Rear Frame Support Cylinder, widely used in articulated frame-steer machines including telescopic handlers and rough-terrain cranes — both of which share the same quality standards and surface treatment specifications as the wind power series.
High-pressure lifting cylinders for crawler crane boom systems. Engineered for maximum duty cycles in infrastructure and civil construction projects.
Robust frame-support cylinders for articulated machines and rough-terrain equipment. Long service life under oscillating lateral loads.
Our Factory & Custom Engineering Capability
Our manufacturing facility operates a 28,000 m² production footprint equipped with CNC deep-hole boring and honing lines, automated hard chrome plating bays, and a fully equipped hydraulic test bench capable of proof-testing cylinders to 1.5 times rated pressure. Every cylinder exits the production line with a full inspection record covering dimensional check, pressure test certificate, and surface treatment verification — documentation that satisfies the quality requirements of UK wind energy operators and their insurance surveyors.
Custom engineering is a core competency. Our applications team works directly with OEM design engineers to develop pitch cylinder variants with modified stroke lengths, alternative port orientations, non-standard mounting configurations, or modified seal packages suited to alternative hydraulic fluids including fire-resistant fluids (HFA, HFB, HFC) used on specific offshore platforms. Custom drawing review, 3D model interchange (STEP/IGES), and prototype lead times of 8–12 weeks are standard. For wind energy projects in the UK and Europe, we maintain a dedicated account management structure with engineers fluent in IEC 61400 documentation requirements.
Customer Success — Real Projects, Real Results
Representative cases drawn from our wind energy cylinder supply programme.
Case Study — Offshore Wind, Scotland
North Sea Offshore Wind Farm Maintenance Programme — Aberdeen, Scotland
A Scottish-based offshore wind operations and maintenance (O&M) contractor responsible for a 120-turbine North Sea array was encountering premature pitch cylinder failures on a fleet of 2.5 MW turbines installed in 2011. The original cylinders were exhibiting chrome spalling and seal extrusion at roughly 60% of their designed service life — likely due to higher-than-specification hydraulic pressure transients. After evaluating three potential replacement suppliers, the contractor selected our HCYY-series cylinders based on the 25 MPa pressure tolerance, seal package compatibility with their existing VG46 hydraulic oil, and the availability of full material traceability certificates required by their offshore insurance underwriters. A batch of 36 replacement cylinders was delivered to Aberdeen in 11 weeks from order confirmation. After 18 months in service, no cylinder-related pitch failures had been recorded across the affected turbines.
36 Units Supplied
11-Week Lead Time
Zero Failures at 18 Months
“The cylinder dimensions matched our hub geometry exactly. We swapped all three blades on a Siemens platform in one 6-hour weather window — no grinding, no shimming. Documentation package was complete and accepted by our certifier without revision.”
James R., O&M Lead
Offshore Wind Contractor · Aberdeen, Scotland
“We quoted three UK hydraulic suppliers and two European ones before approaching Boom Cylinders. The price per unit was 22% lower, lead time was the fastest, and the technical data sheet covered everything our procurement team needed. Reordered twice since.”
Sarah M., Procurement Manager
Renewable Energy Developer · Yorkshire, England
“Custom stroke modification required. The engineering team turned around revised drawings in four days and delivered 12 prototype units inside 10 weeks. Seal life on the modified design has exceeded our internal benchmark in 9-month accelerated testing.”
Dr. Peter L., Design Engineer
Turbine OEM R&D · Bristol, England
Câu hỏi thường gặp
Ready to Source Wind Turbine Hydraulic Pitch Cylinders?
Contact our UK-focused hydraulic engineering team for specifications, pricing, and custom cylinder solutions.
Get a Quote — [email protected]
Boom Cylinders · Wind Power Hydraulic Series · Supplied to the UK Wind Energy Sector
